Meter Hood Removal/Installation

  1. Remove the screws.
  2. Pull the meter hood toward you, then remove clips A and pins B from the dashboard.

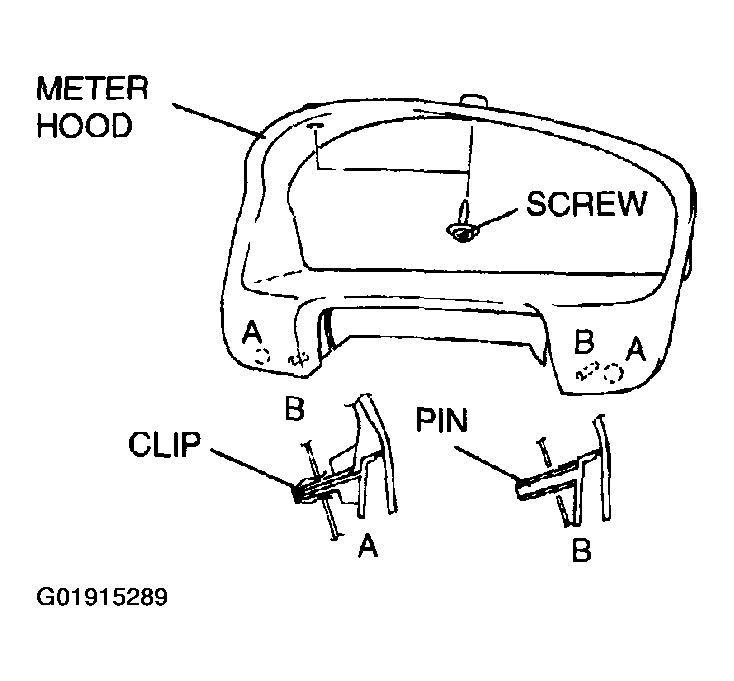

    Fig 1: Removing Meter Hood
    G01915289Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
