Driver's side

  1. Pull the upper side of the lower panel downward, then disengage clips A and pins B from the dashboard.
  2. Pull the lower panel toward you, then disengage hooks C from the dashboard.

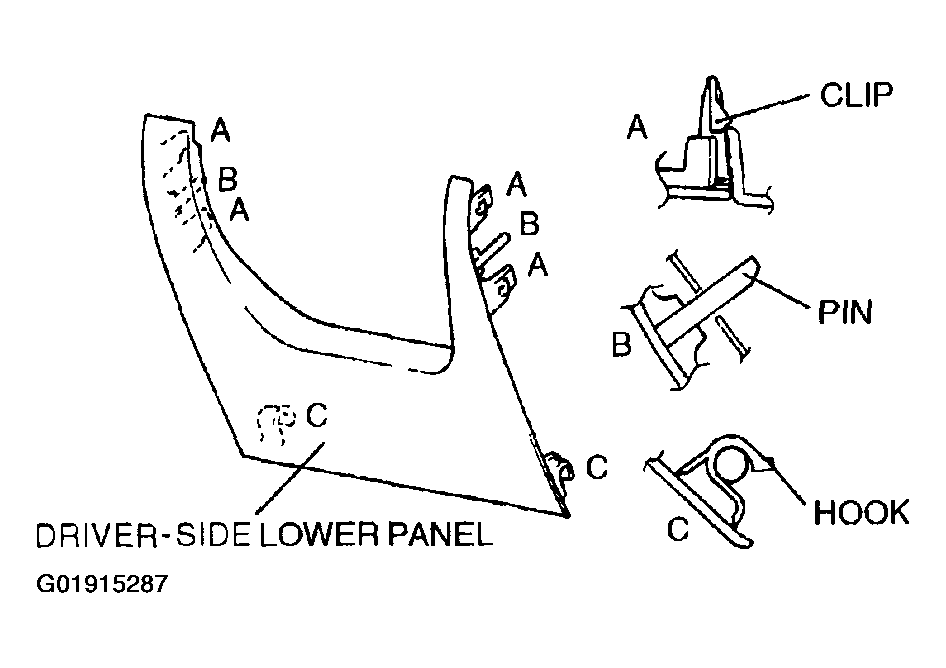

    Fig 1: Removing Lower Panel (Driver'S Side)
    G01915287Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
