Center Panel Removal/Installation

Disconnect the negative battery cable.
Remove the glove compartment.
For vehicles equipped with the semi-logic type climate control unit, disconnect the wires for the heater unit. (See CLIMATE CONTROL UNIT REMOVAL .) (See CLIMATE CONTROL UNIT INSTALLATION .)
Push out clip A from behind the dashboard.

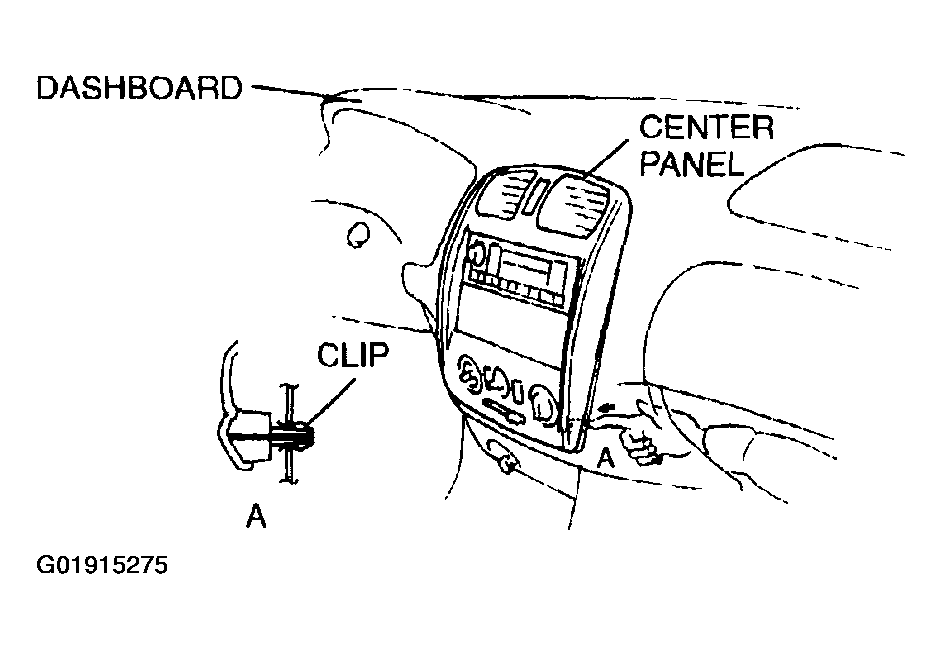

Fig 1: Pushing Out Clip A From Behind Dashboard
Courtesy of MAZDA MOTORS CORP.
Pull the center panel, then remove clips B and pins C from the dashboard.
Disconnect the hazard warning switch connector and climate control unit connector.

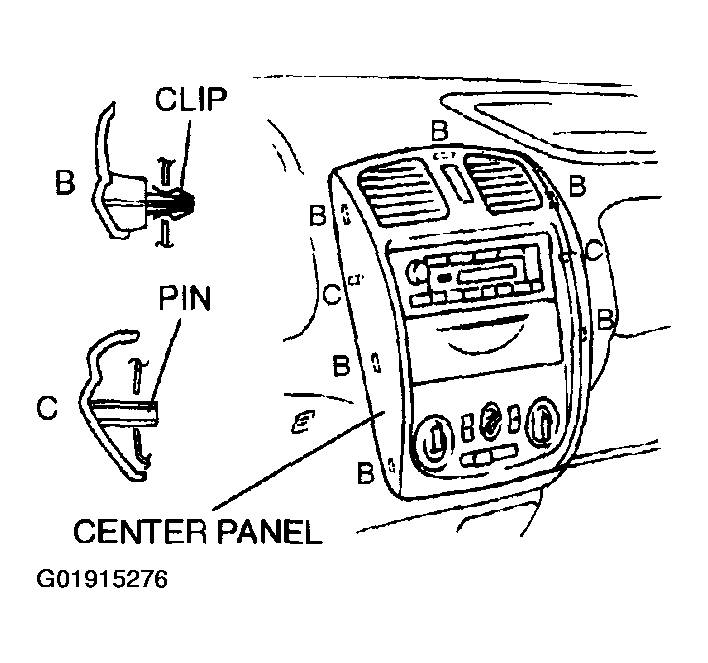

Fig 2: Pulling Center Panel And Removing Clips B And Pins C From Dashboard
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
