Component Disassembly & Reassembly: Differential: Reassembly
WARNING: This page is about a different variant/trim than selected.

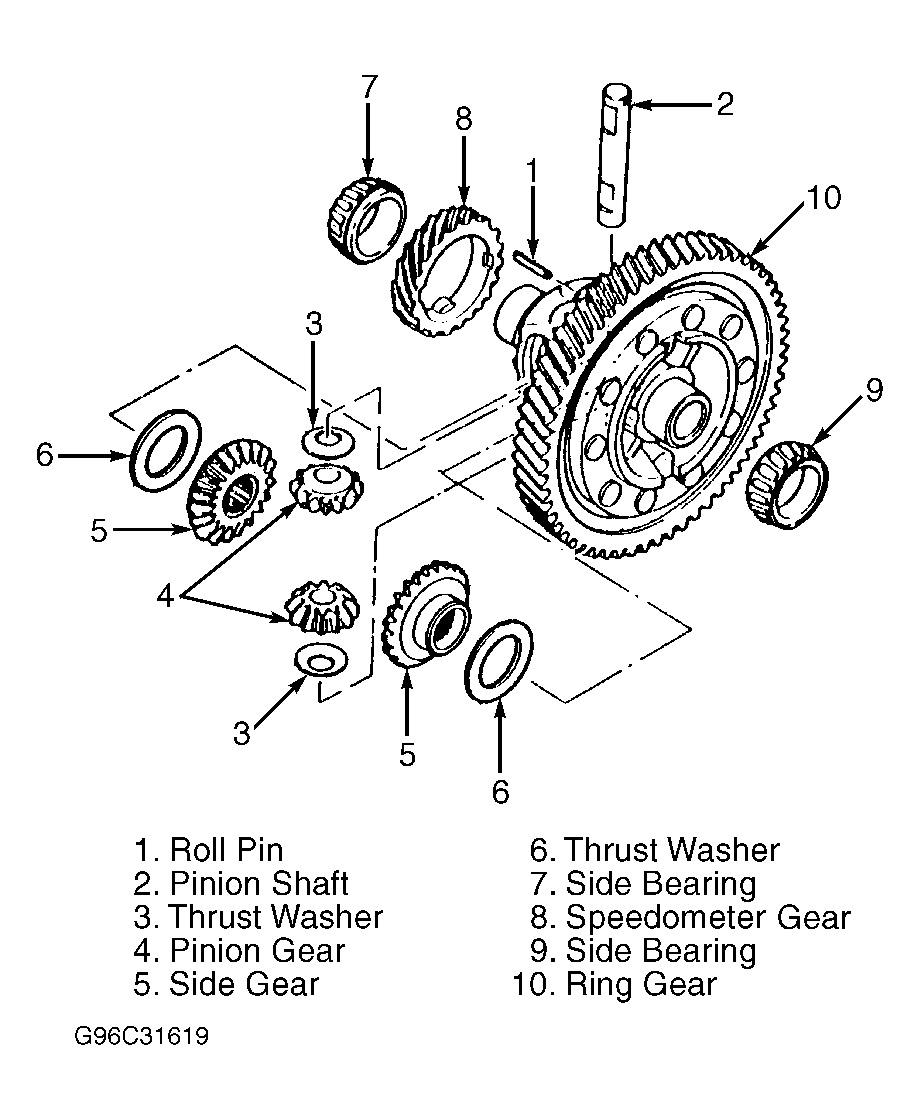

Install speedometer drive gear (if removed) and bearings. Install thrust washers, pinion gears and side gears. Install pinion shaft. Install and crimp roll pin.
Courtesy of MAZDA MOTORS CORP.
