Trunk Side Trim Removal/Installation: 4SD

  1. Remove the trunk mat.
  2. Remove the trunk end trim.
  3. Remove the tire house trim.
  4. Remove the fasteners, then remove the belt.
  5. Pull the trunk side trim outward, then remove it.

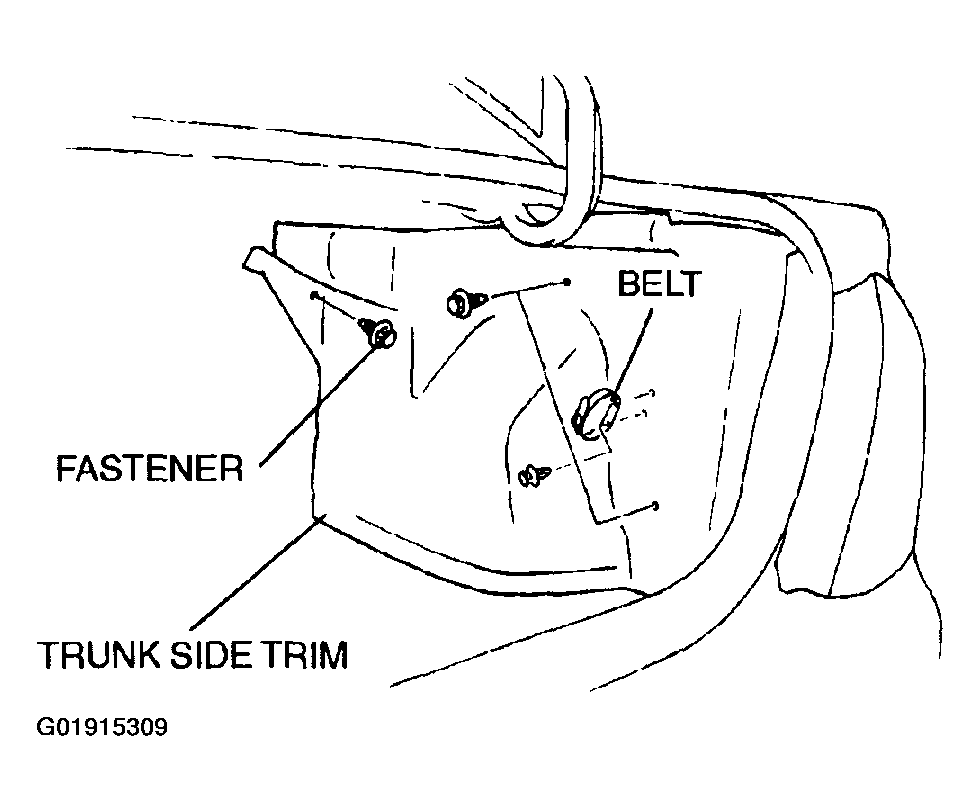

    Fig 1: Removing Trunk Side Trim (4SD)
    G01915309Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
