FS Engine

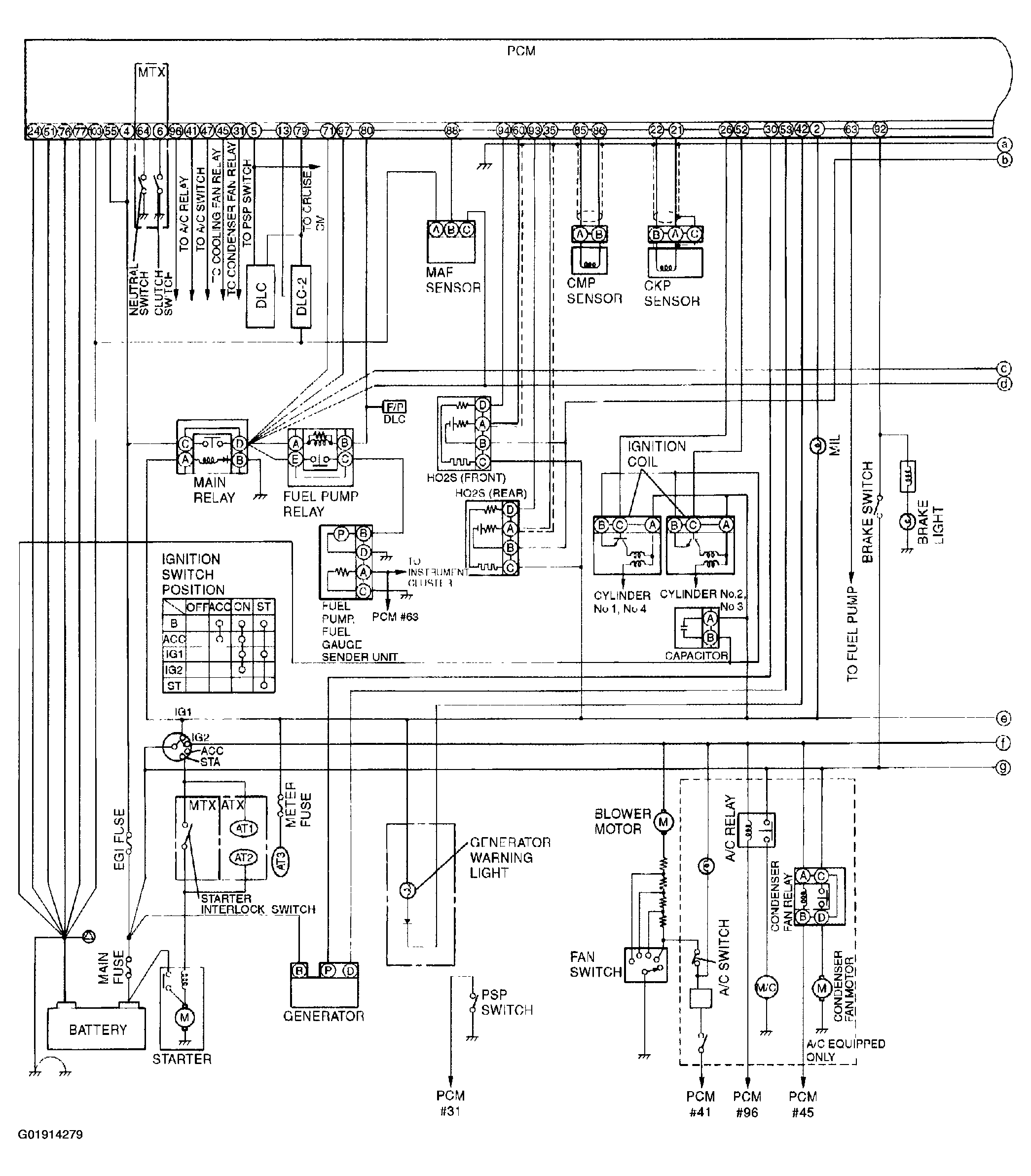

Fig 1: Automatic Transaxle System Wiring Diagram - FS Engine (1 Of 3)
G01914279Courtesy of MAZDA MOTORS CORP.

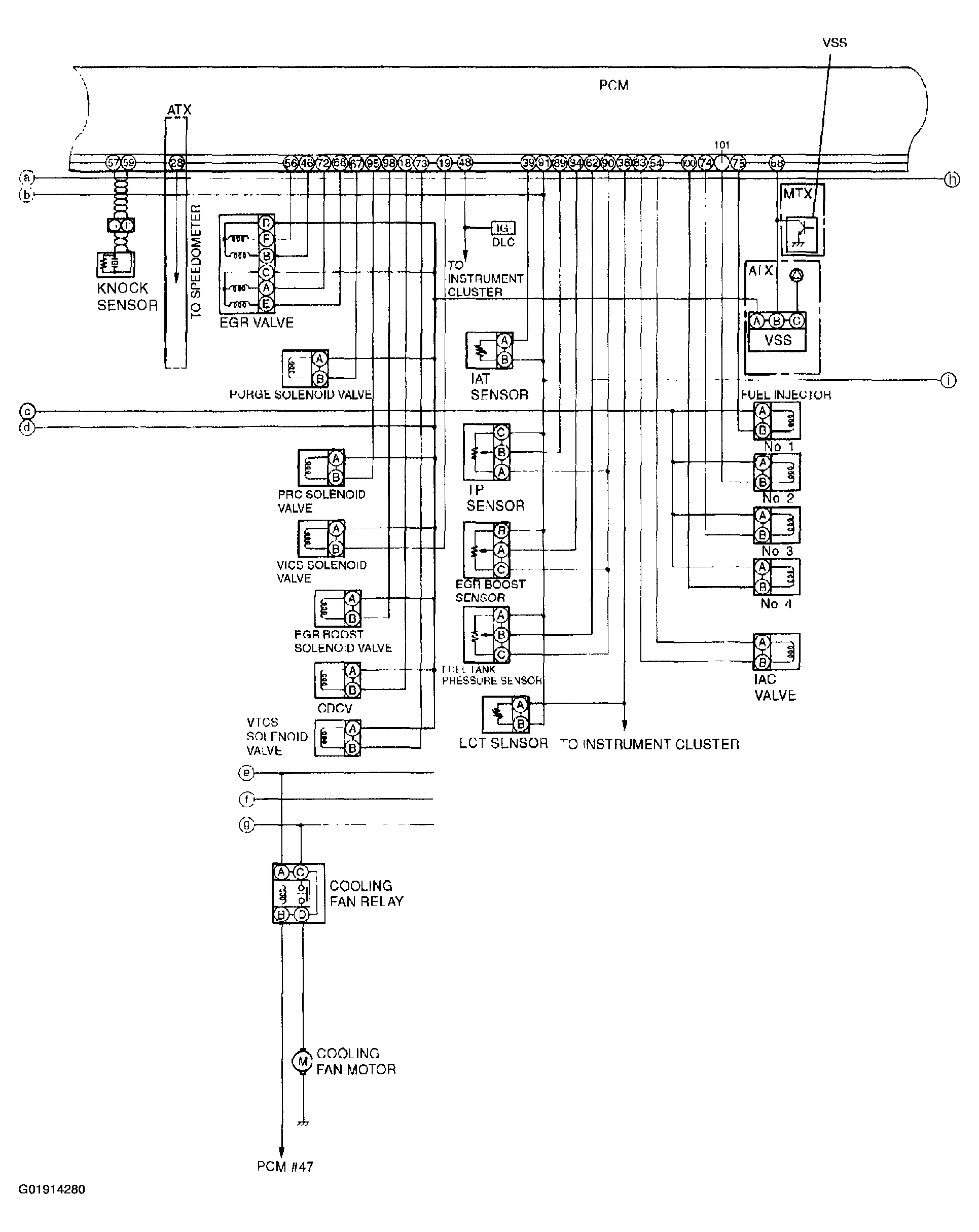

Fig 2: Automatic Transaxle System Wiring Diagram - FS Engine (2 Of 3)
G01914280Courtesy of MAZDA MOTORS CORP.

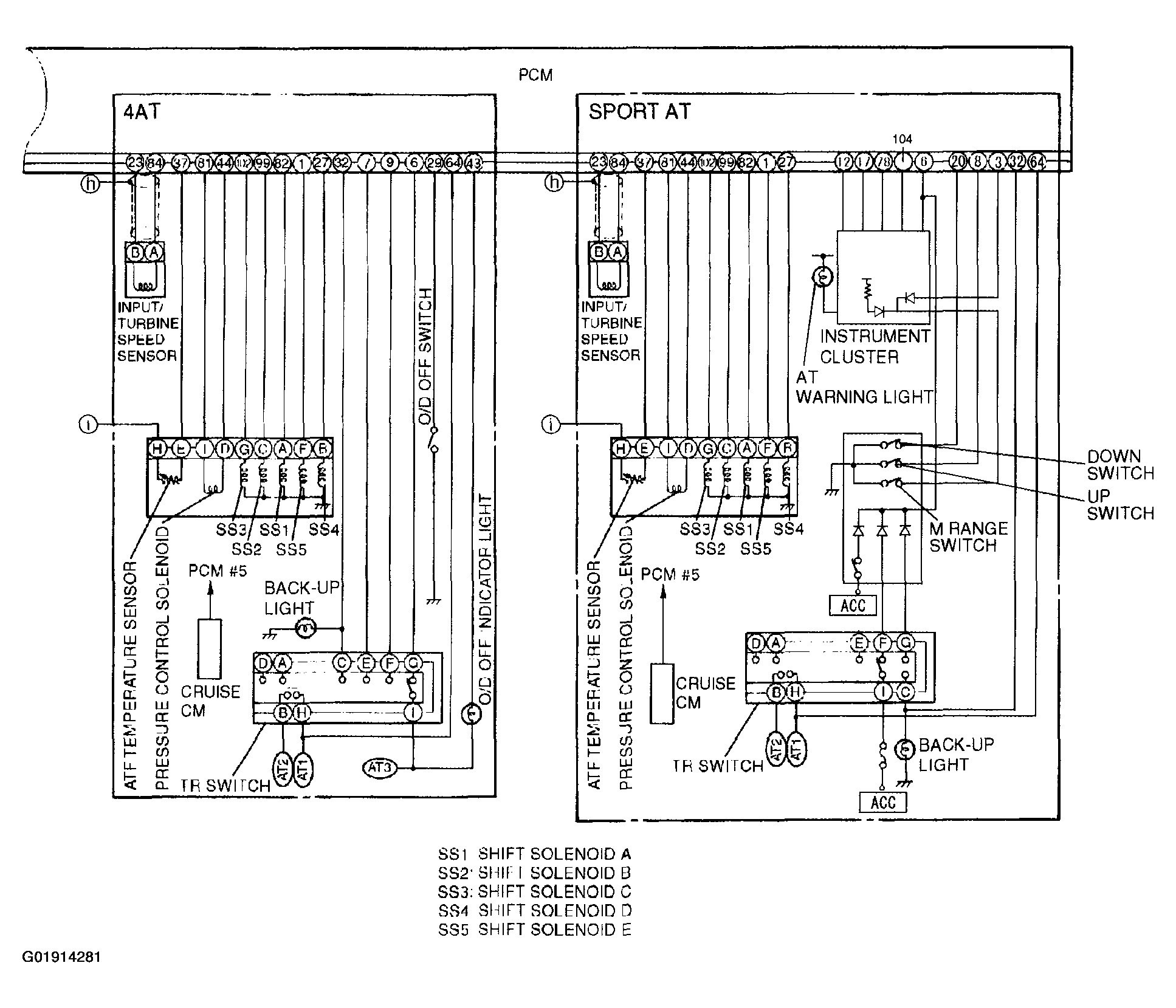

Fig 3: Automatic Transaxle System Wiring Diagram - FS Engine (3 Of 3)
G01914281Courtesy of MAZDA MOTORS CORP.
