Oil Pan Upper Block Removal Note

  1. Remove the two bolts at the rear of the cylinder block.
  2. Loosen the oil pan upper block bolts in 2 or 3 steps in the order shown.

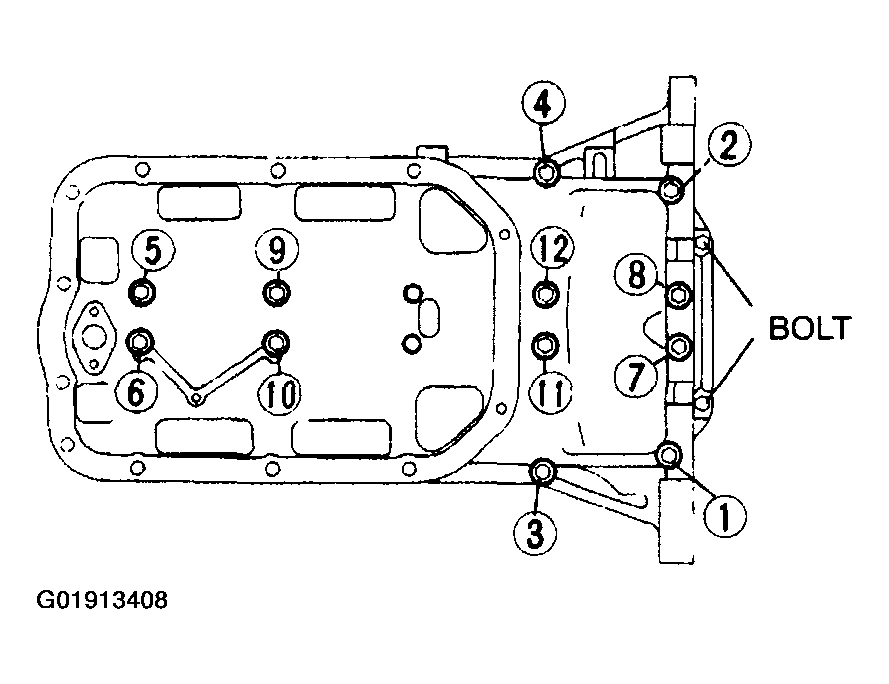

    Fig 1: Oil Pan Upper Block Bolts Loosening Sequence
    G01913408Courtesy of MAZDA MOTORS CORP.
  3. Remove the oil pan upper block using the separator tool.

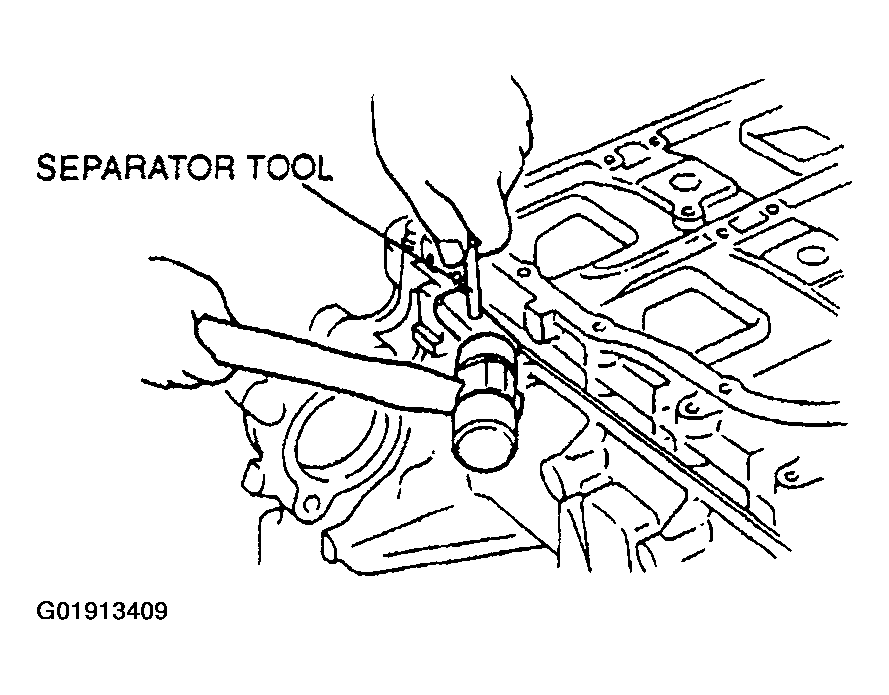

    Fig 2: Removing Oil Pan Upper Block
    G01913409Courtesy of MAZDA MOTORS CORP.
