Oil Strainer Installation Note: FS

  1. Install the oil strainer gasket as shown.

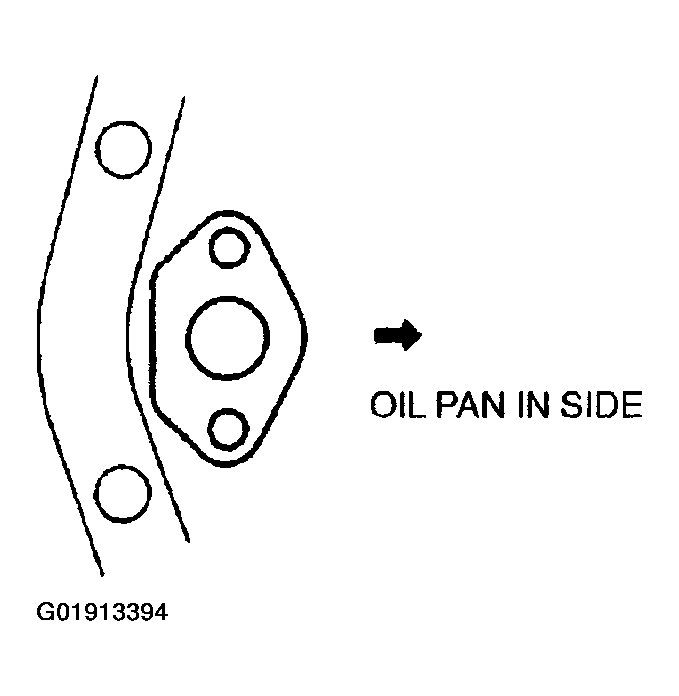

    Fig 1: Installing Oil Strainer Gasket
    G01913394Courtesy of MAZDA MOTORS CORP.
  2. Tighten the bolts in the order shown.

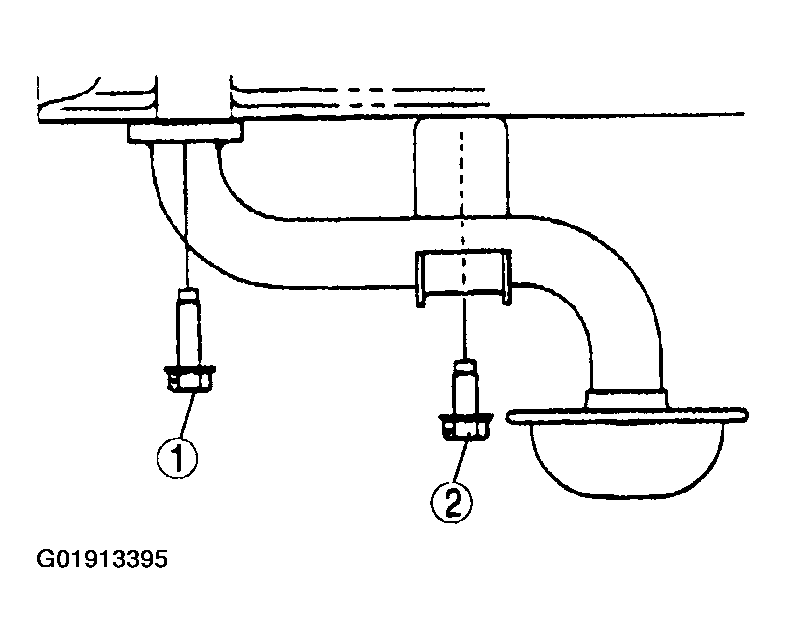

    Fig 2: Installing Oil Strainer Bolts
    G01913395Courtesy of MAZDA MOTORS CORP.
