Oil Pan Removal Note

  1. Remove the oil pan mounting bolts.
  2. Screw in a oil pan bolt in a weld nut hole to make a small gap between the oil pan upper block and the oil pan. (FS model)
    CAUTION:
    • Pry tools can easily scratch the cylinder block and MBSP contact surfaces. Prying off the MBSP can also easily bend the MBSP flange. (ZM model)

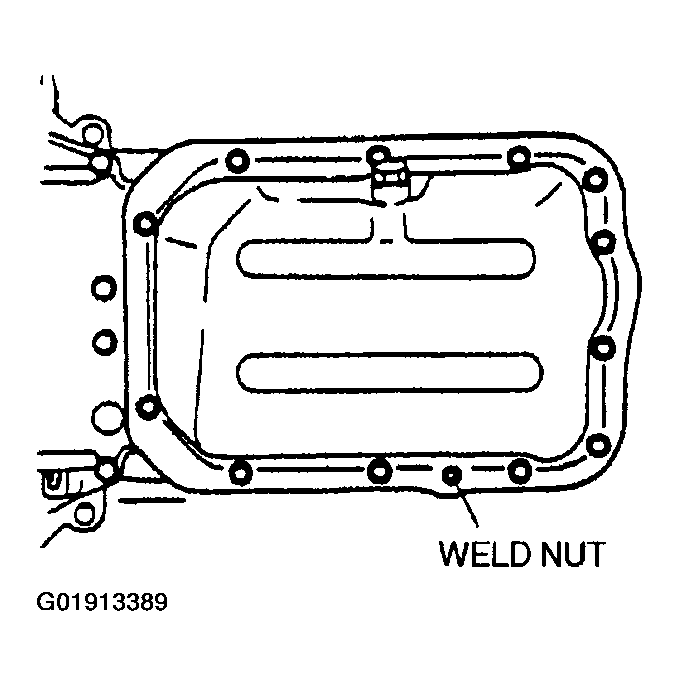

    Fig 1: Identifying Oil Pan Weld Nut
    G01913389Courtesy of MAZDA MOTORS CORP.
  3. Remove the oil pan using a separator tool.

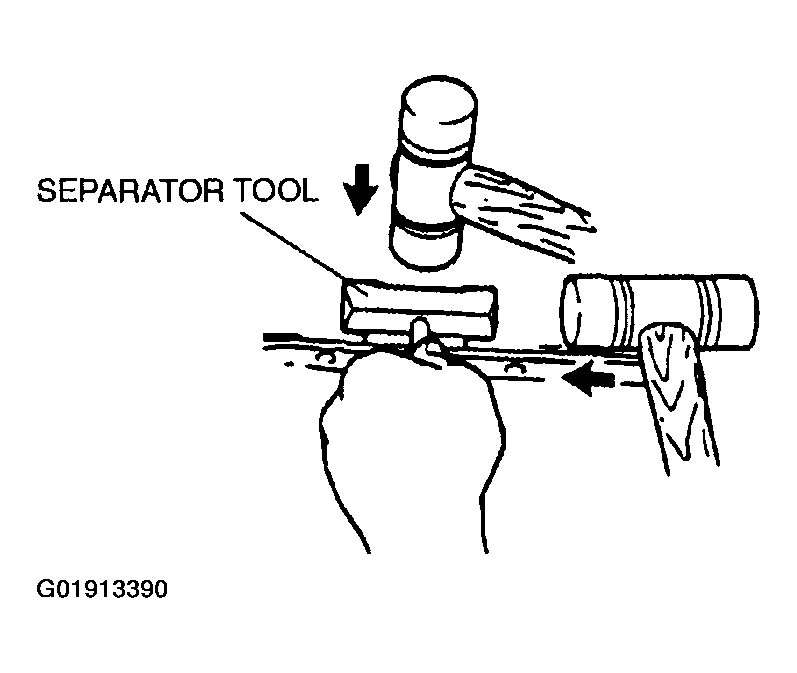

    Fig 2: Removing Oil Pan Using A Separator Tool
    G01913390Courtesy of MAZDA MOTORS CORP.
