Torque Specifications
Torque Specifications
TORQUE SPECIFICATIONS
Application
Ft. Lbs. (N.m)

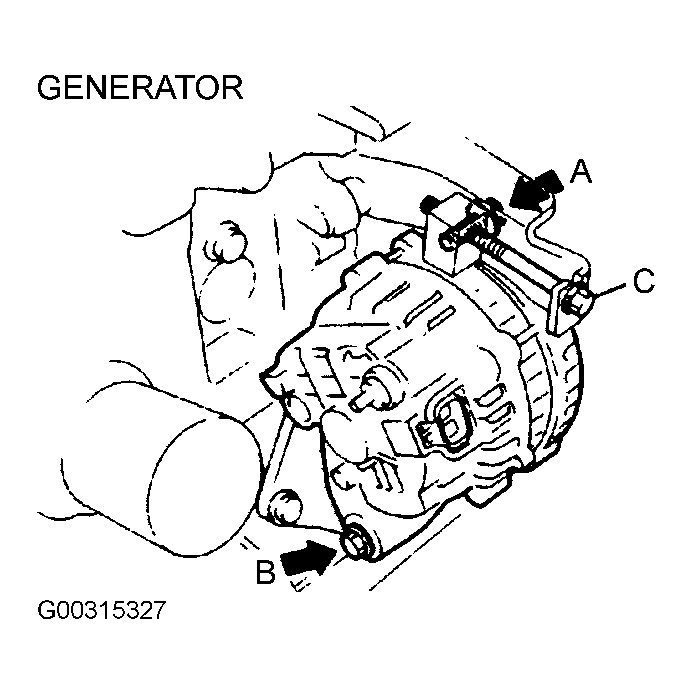

Generator
(1)
Bolt (A)
14-18 (19-25)
Bolt (B)
28-38 (38-51)

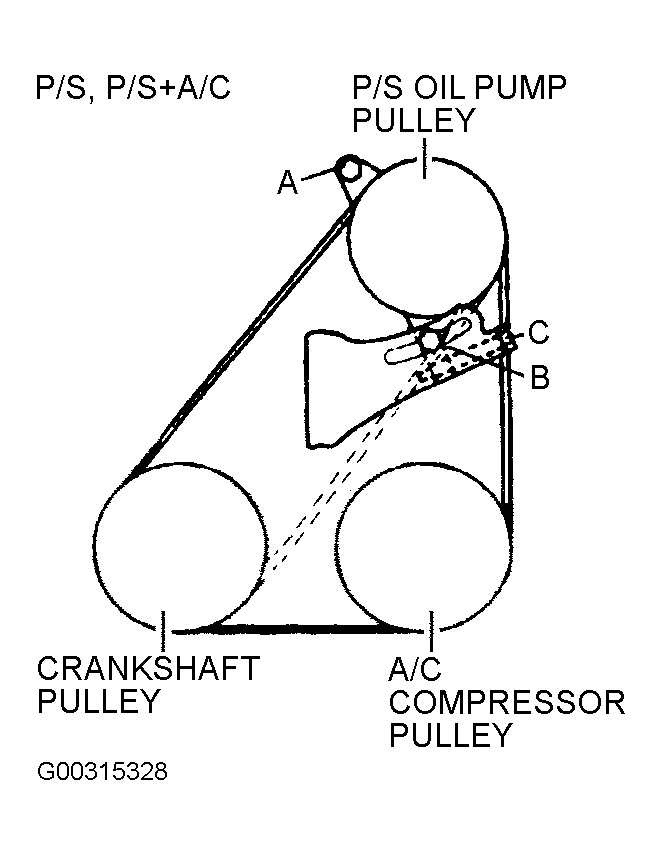

P/S Pump
(2)
Bolt (A)
32-44 (44-60)
Bolt (B)
24-33 (32-46)
(1)
See
Figure
.
(2)
See
Figure
.
