Joint Shaft Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the figure.

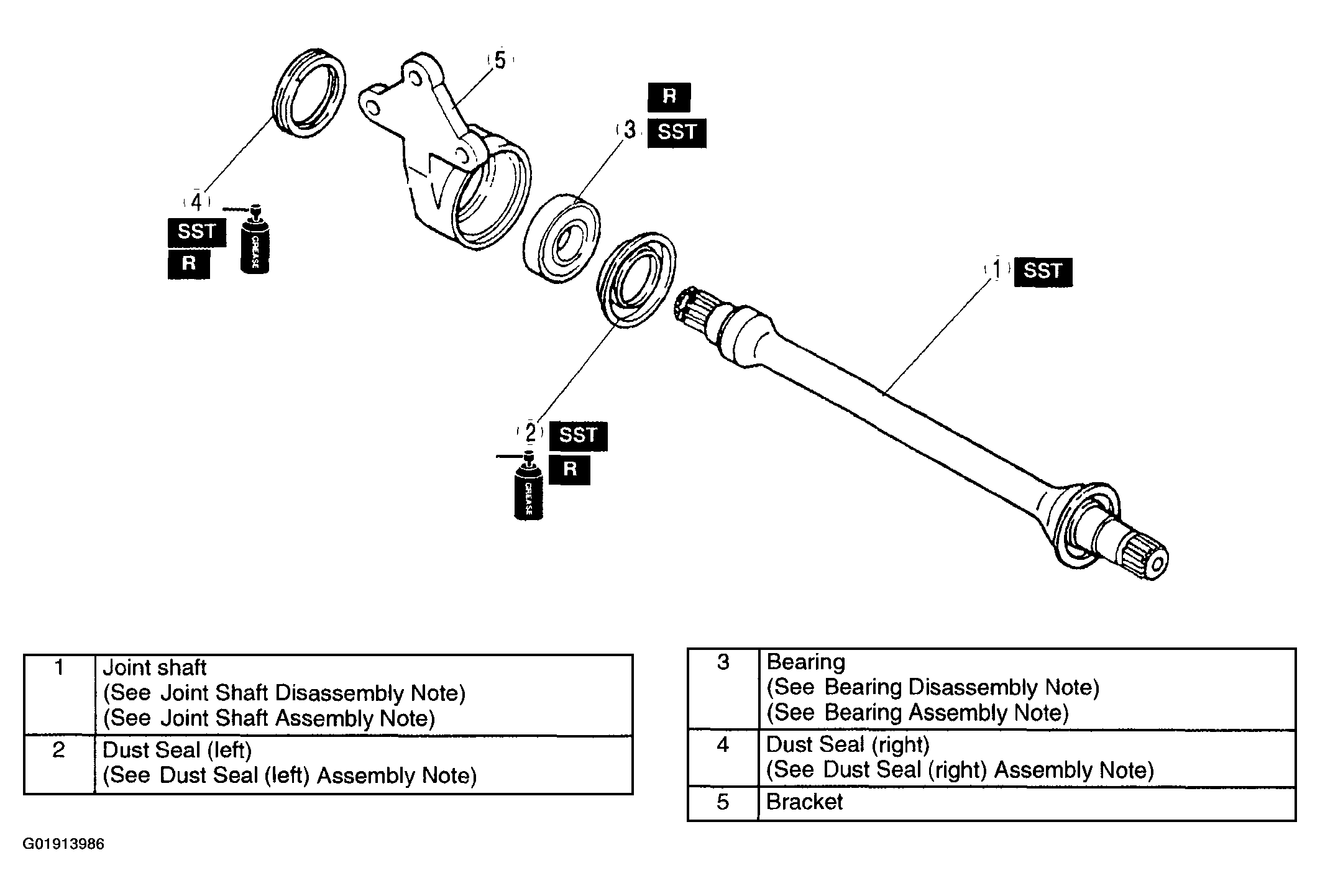

    Fig 1: Exploded View Of Joint Shaft
    G01913986Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of removal.
