Bearing Assembly Note

  1. Install the new bearing using the SSTs.

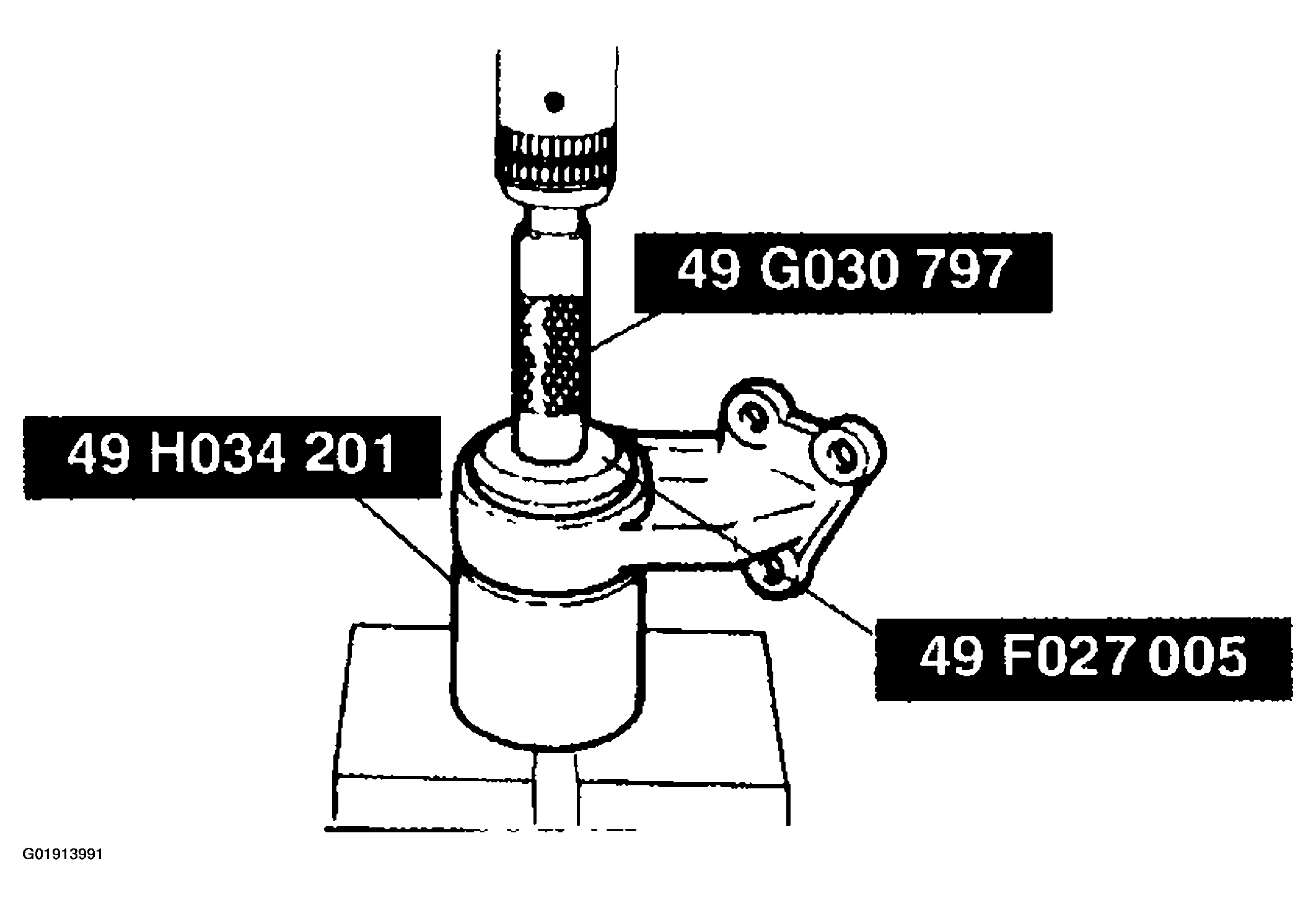

    Fig 1: Installing New Bearing Using SST
    G01913991Courtesy of MAZDA MOTORS CORP.
