Rear Seat Removal/Installation: 4SD

  1. Remove in the order indicated in the figure.

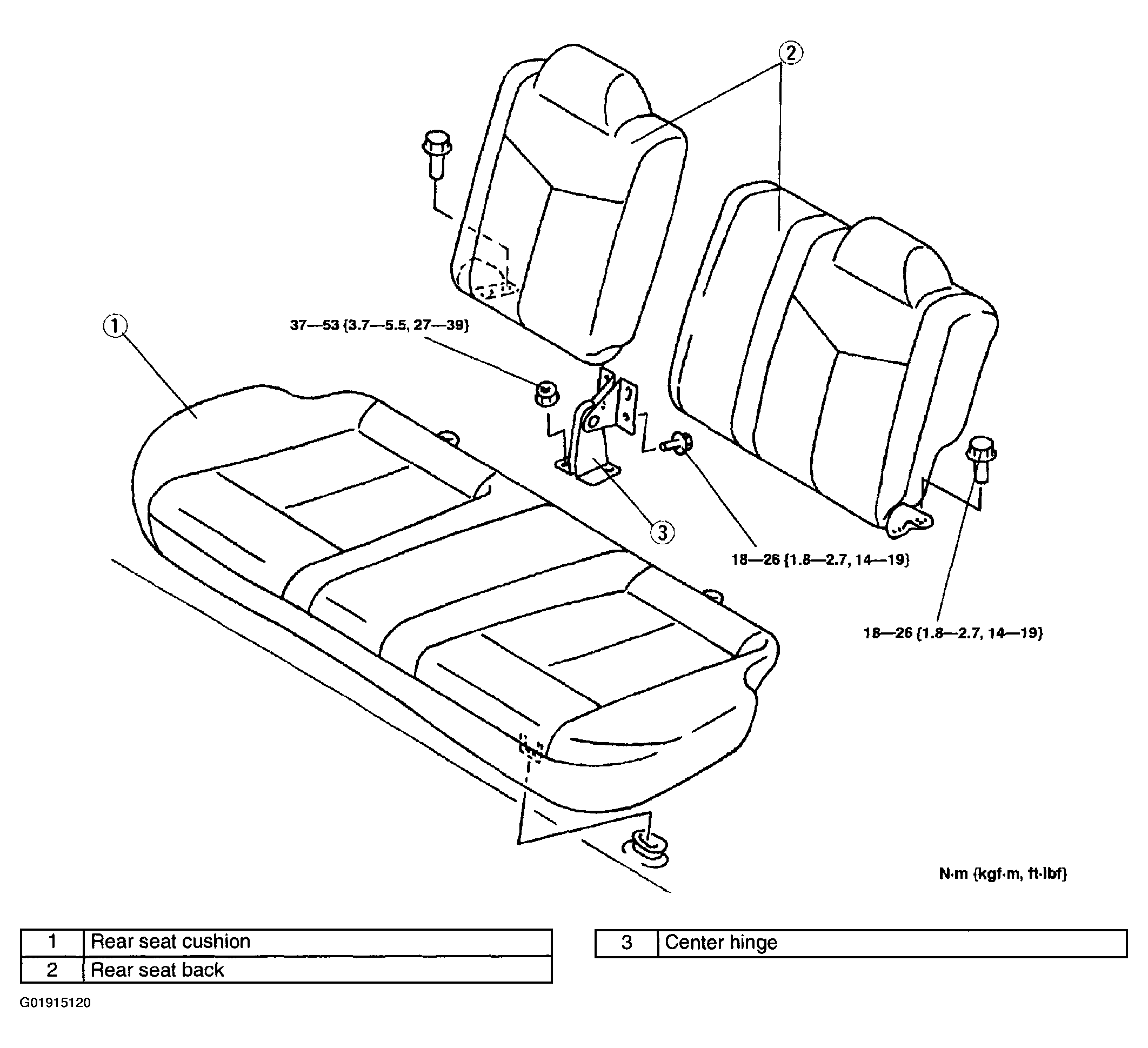

    Fig 1: Exploded View Of Rear Seat Components
    G01915120Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
