Rear Seat Disassembly/Assembly: 5HB

  1. Disassemble in the order indicated in the figure.

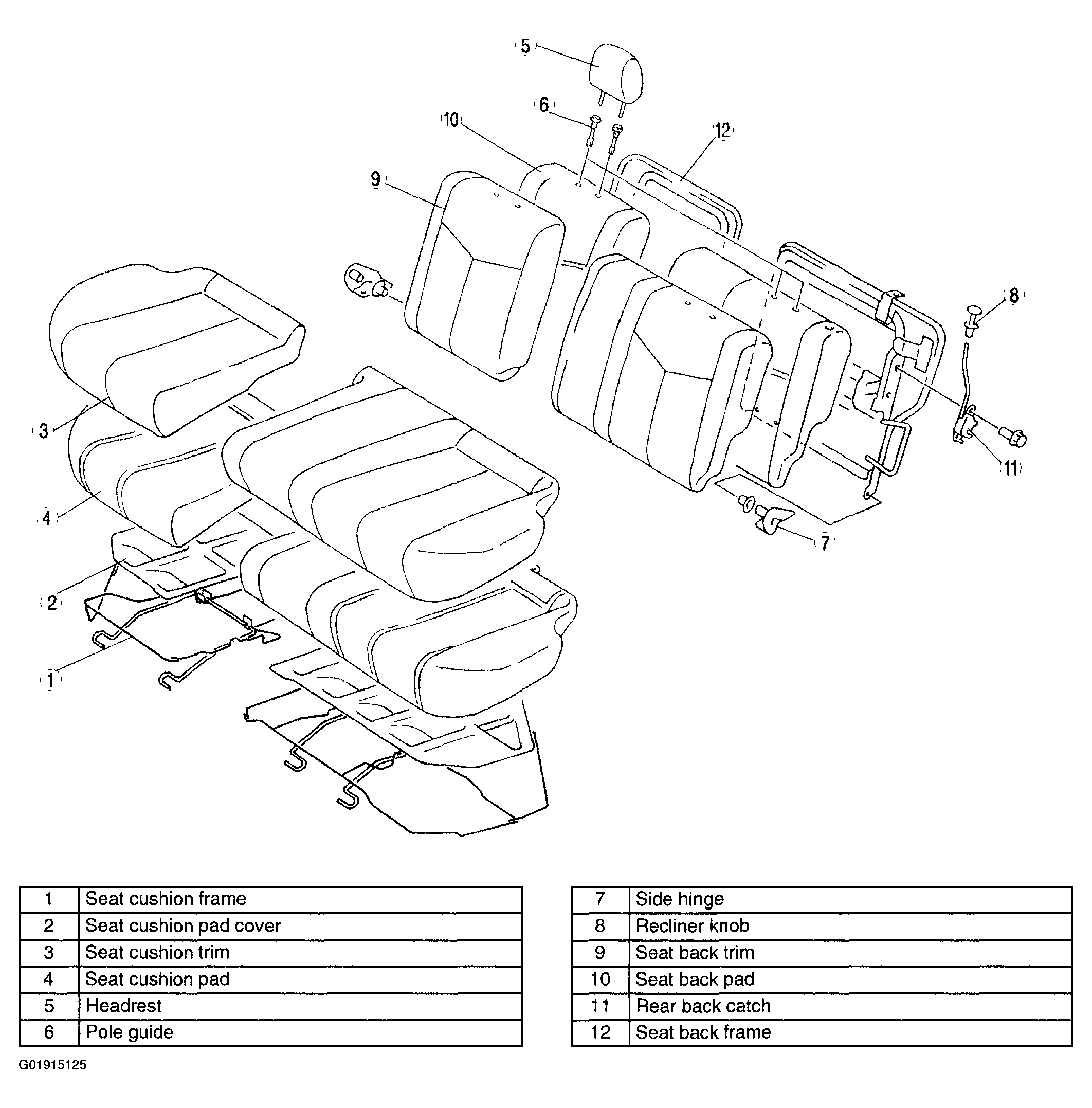

    Fig 1: View Of Rear Seat (5HB)
    G01915125Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
