Front Side Trim Removal/Installation

  1. Remove the front scuff plate.
  2. Turn the seaming welt over.
  3. Remove the fasteners.
  4. Pull the front side trim toward you, then disengage clip A, pins B and C from the body.

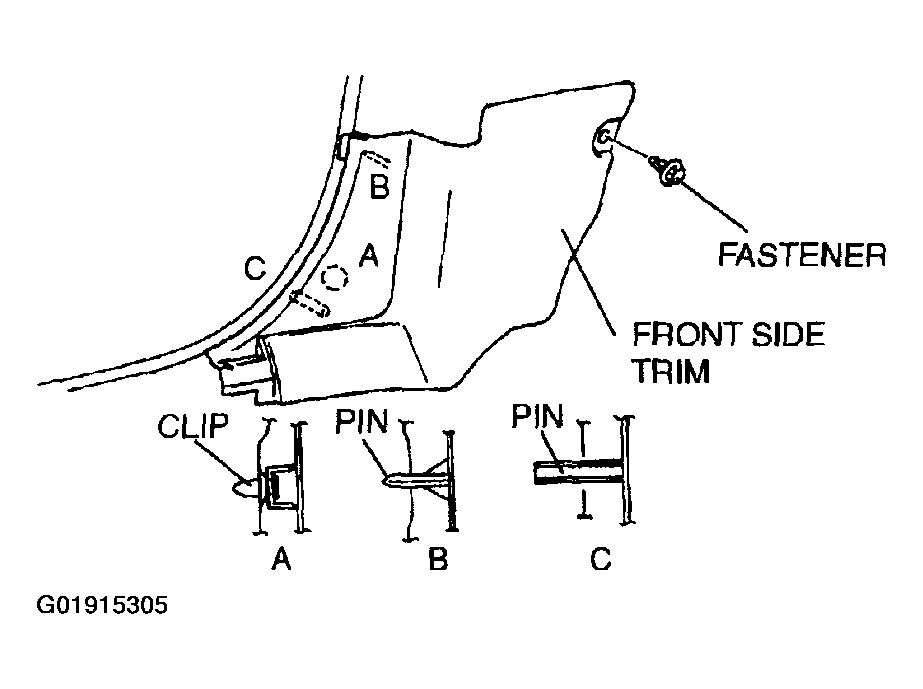

    Fig 1: Removing Front Side Trim
    G01915305Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
