Fuel-Filler Lid And Opener Removal/Installation

To remove the fuel-filler lid opener, remove the left side trunk side trim.
To remove the fuel-filler lid opener cable, perform the following.
1. Remove the driver's seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
2. Remove the driver-side front and rear scuff plate.
3. Remove the driver-side B-pillar lower trim.
4. Remove the driver's seat belt lower anchor.
5. Remove the driver-side tire house trim.
6. Remove the driver-side trunk side trim.
7. Turn the floor covering over.

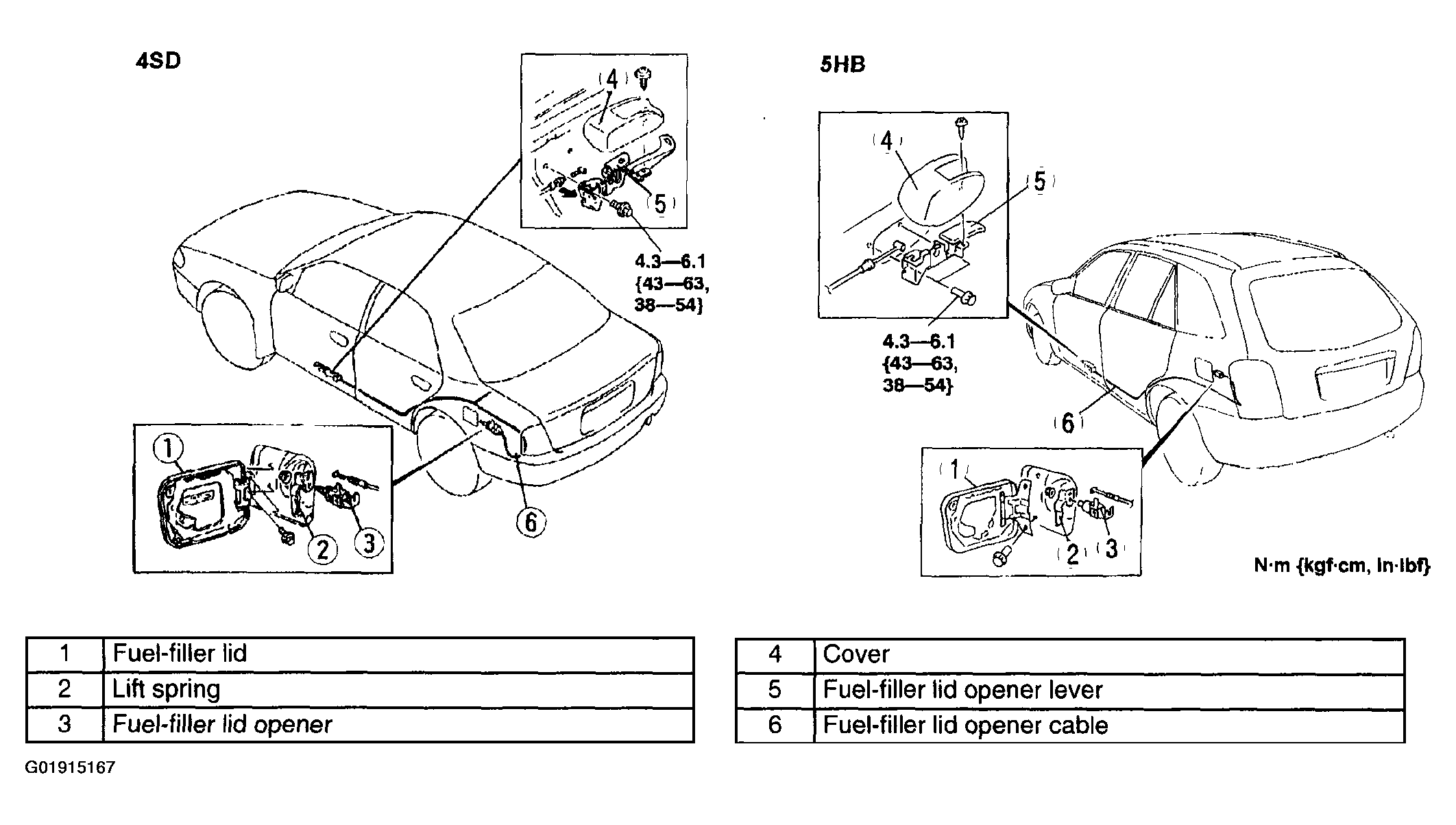

Fig 1: Removing Fuel-Filler Lid And Opener
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Remove in the order indicated in the table.
Adjust the fuel-filler lid. (See FUEL-FILLER LID ADJUSTMENT .)
