Front Door Lock Actuator Inspection

  1. Remove the front door trim.
  2. Turn the door screen over.
  3. Disconnect the front door lock actuator connector.
  4. Apply battery positive voltage to the front door lock actuator terminals and inspect the operation of the front door lock actuator.
    • If not as specified, replace the front door lock.

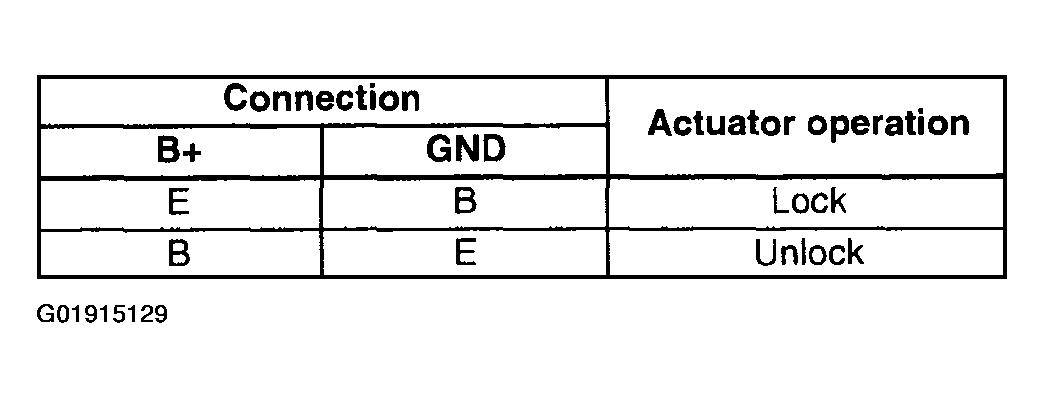

    Fig 1: Actuator Operation Chart
    G01915129Courtesy of MAZDA MOTORS CORP.

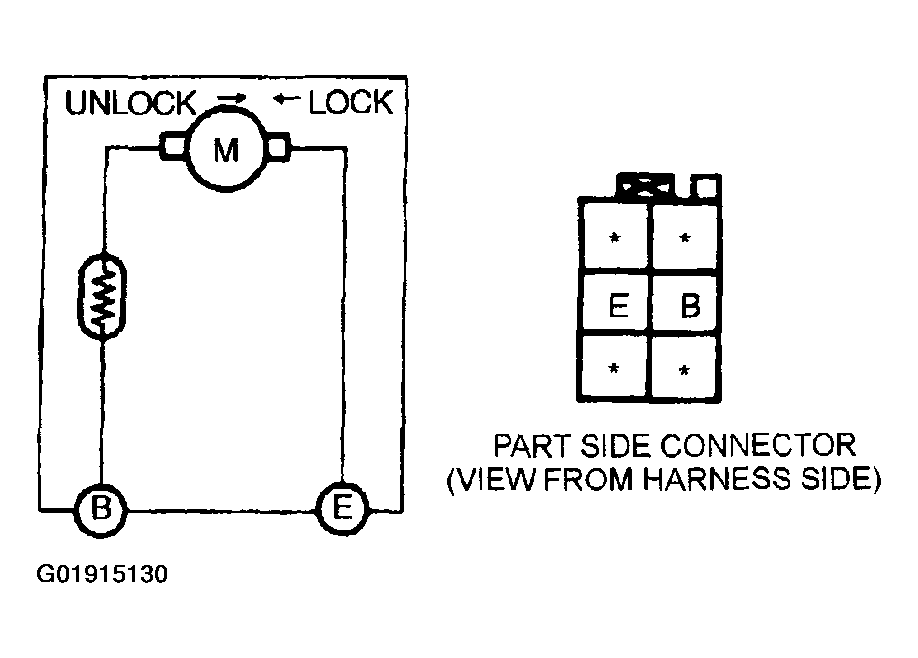

    Fig 2: Identifying Front Door Lock Actuator
    G01915130Courtesy of MAZDA MOTORS CORP.
