Door Lock Striker Removal/Installation

WARNING:
  • Handling the side air bag sensor improperly can accidentally deploy the side air bag module, which may seriously injure you. Read AIR BAG SAFETY PRECAUTIONS before working around the B-pillar areas.
NOTE:
  • The side air bag sensor is located in the B-pillar.
  1. Disconnect the negative battery cable.
  2. Remove the screws.
  3. Remove the door lock striker.

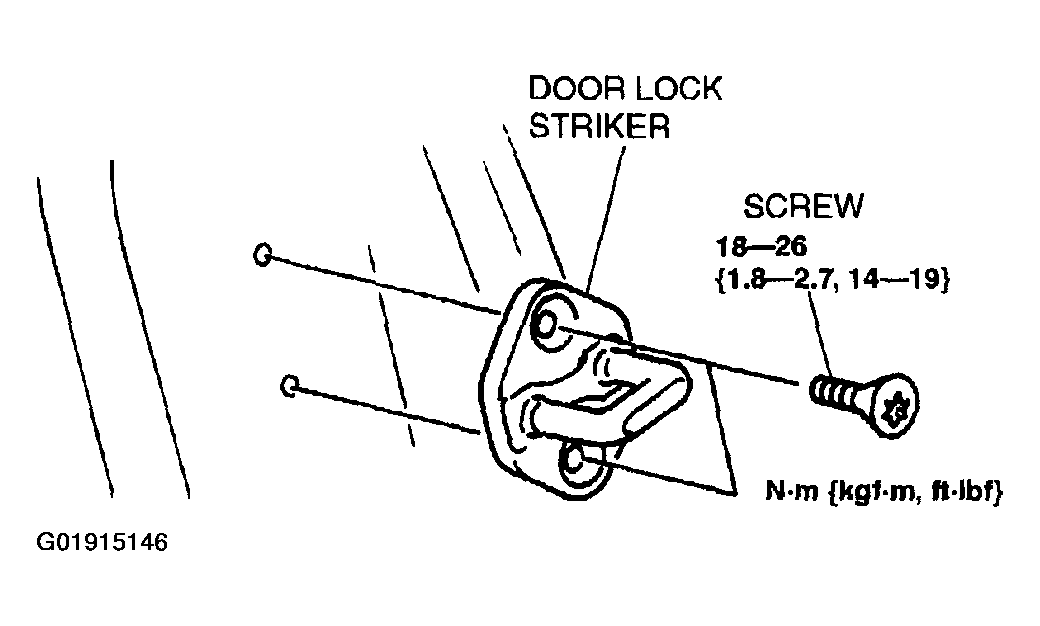

    Fig 1: Removing Door Lock Striker
    G01915146Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
