Washer Fluid-Level Sensor Removal/Installation

Disconnect the negative battery cable.
Remove the washer tank. (See WASHER TANK REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

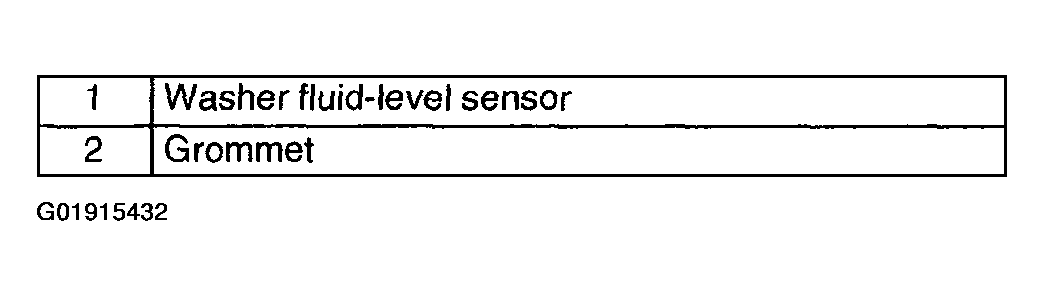

Fig 1: Washer Fluid-Level Sensor Removing Sequence Index
Courtesy of MAZDA MOTORS CORP.

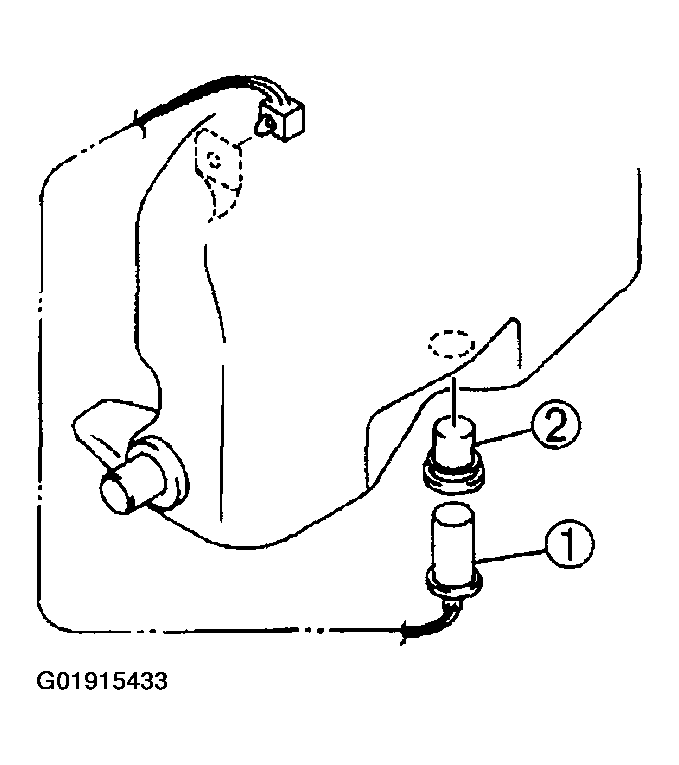

Fig 2: Removing Sequence Of Washer Fluid-Level Sensor
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
