Washer Fluid-Level Sensor Inspection

  1. Disconnect the negative battery cable.
  2. Remove the washer tank. (See WASHER TANK REMOVAL/INSTALLATION  .)
  3. Inspect for continuity between the washer fluid-level sensor terminals using an ohmmeter.
    • If not as specified, replace the washer fluid-level sensor.

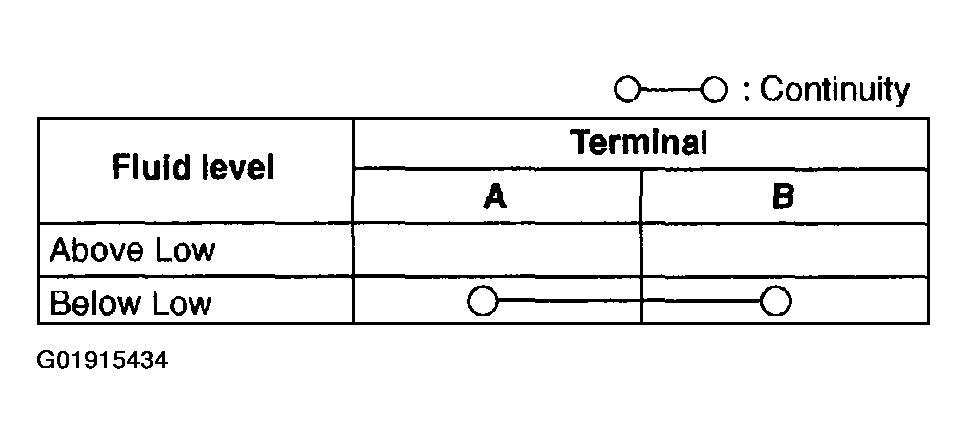

    Fig 1: Washer Fluid-Level Sensor Terminals Continuity Reference
    G01915434Courtesy of MAZDA MOTORS CORP.
    Fig 2: Inspecting For Continuity Between Washer Fluid-Level Sensor Terminals
    G01915435Courtesy of MAZDA MOTORS CORP.
