Deflector Removal/Installation: 4SD: Notes

  1. Fully open the glass panel.
  2. To remove the stopper, remove the sunroof unit. (See SUNROOF UNIT REMOVAL/INSTALLATION  .)
  3. Remove in the order indicated in the table.

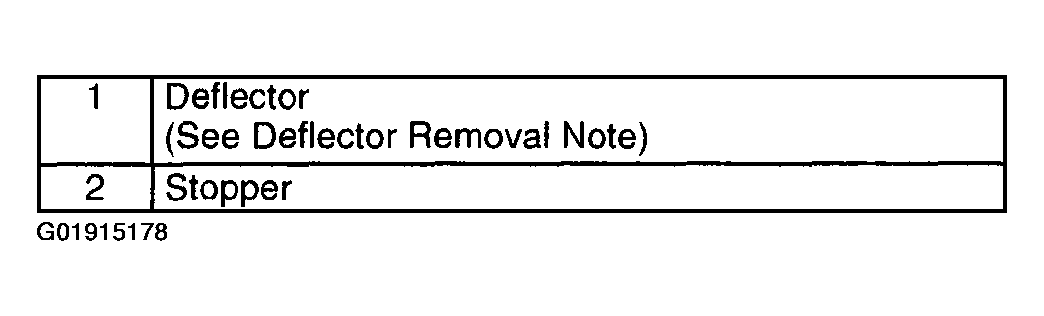

    Fig 1: Deflector Removing Sequence Index
    G01915178Courtesy of MAZDA MOTORS CORP.

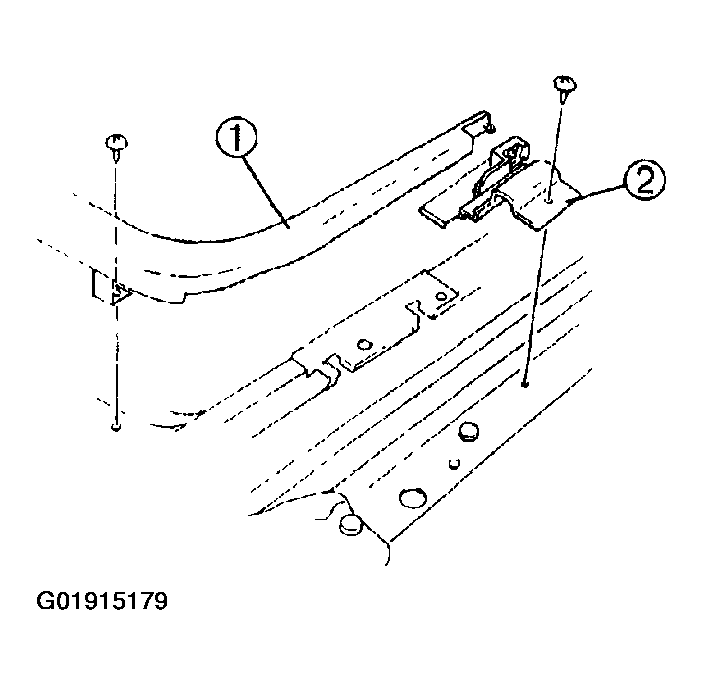

    Fig 2: Removing Stopper
    G01915179Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
