Vacuum Diagrams: Introduction: MPV

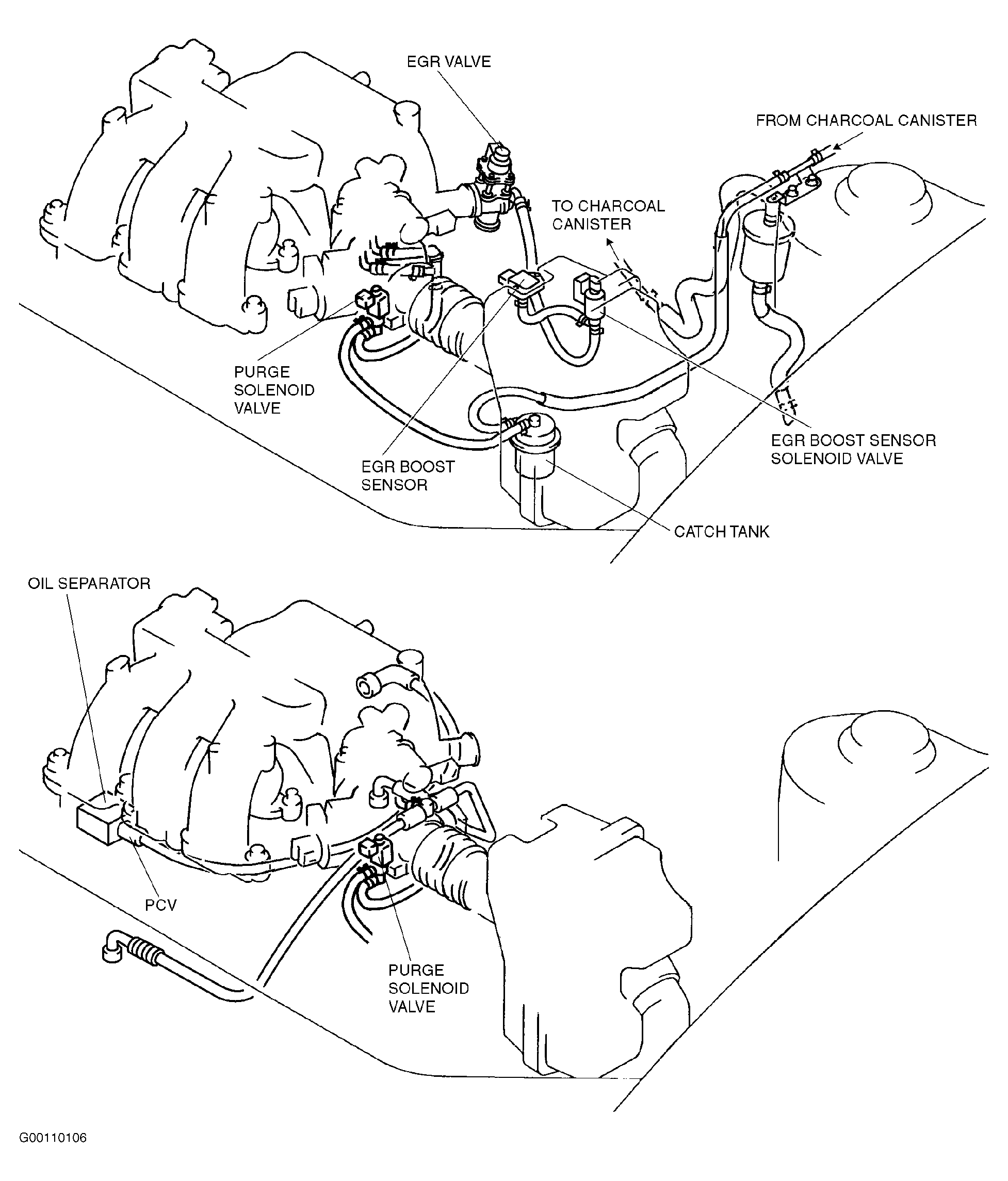

Fig 1: Vacuum Diagram - 2003 (MPV 3.0L)

G00110106

Courtesy of MAZDA MOTORS CORP.
