Vacuum Diagrams: Introduction: B4000

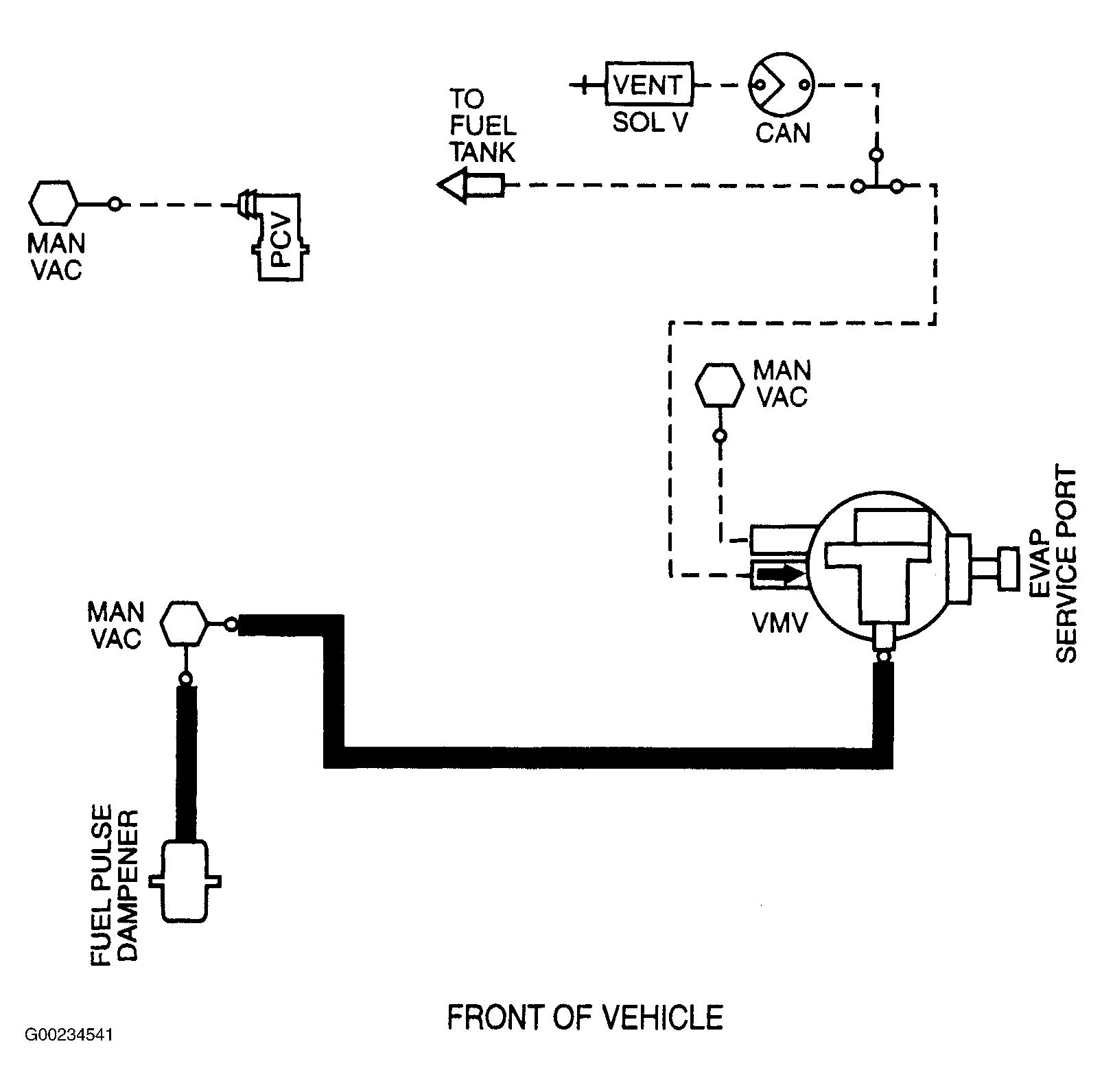

Fig 1: Vacuum Diagram - 2003 (B4000 4.0L)

G00234541

Courtesy of FORD MOTOR CO.
