Abs HU/Cm Removal/Installation: Notes

  1. Remove in the order indicated in the table.

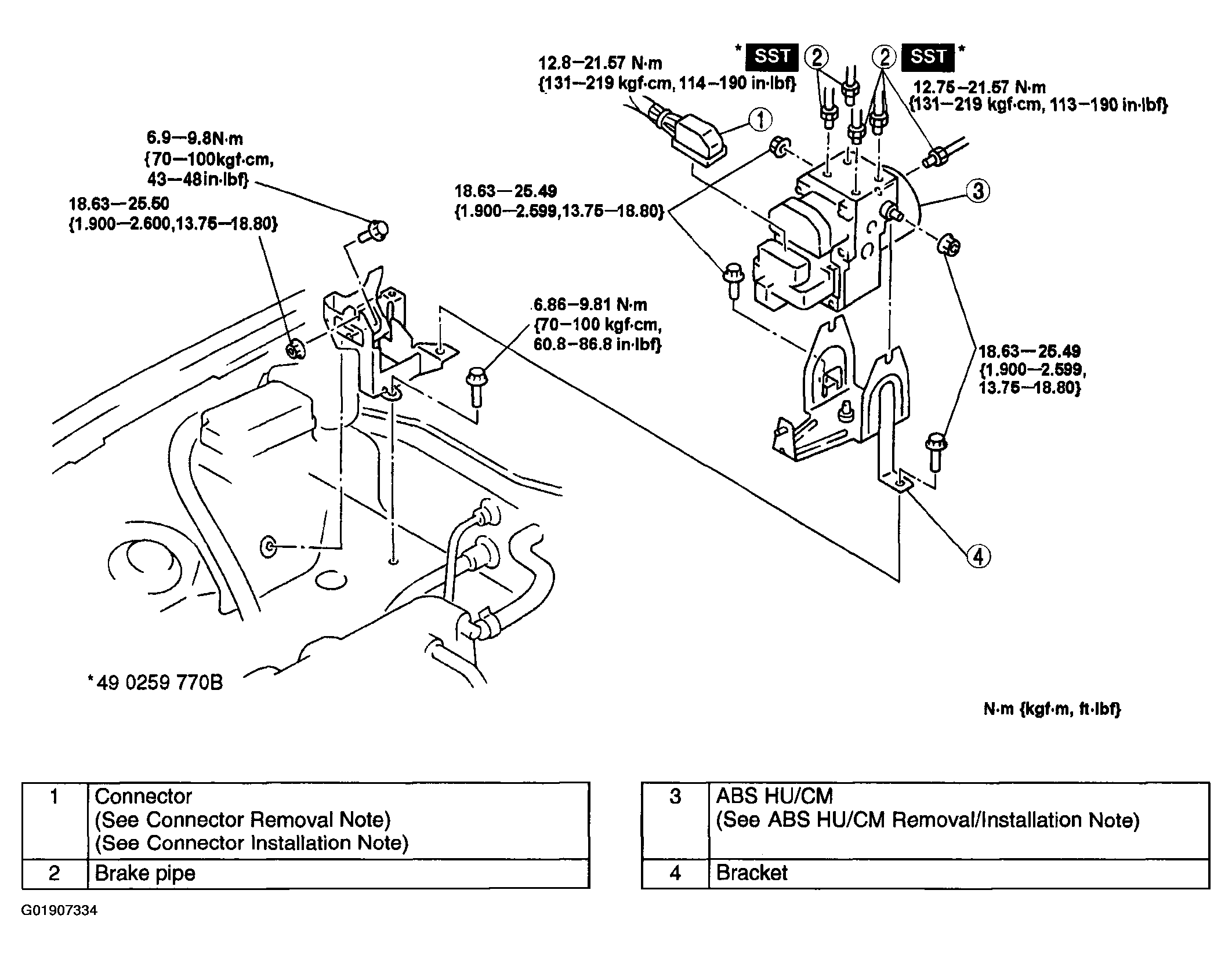

    Fig 1: Removal Order Of ABS HU/CM
    G01907334Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
