Power Outside Mirror Inspection

  1. Remove the door speaker. (See DOOR SPEAKER REMOVAL/INSTALLATION .)
  2. Disconnect the power outside mirror connector. (See POWER OUTSIDE MIRROR REMOVAL/INSTALLATION  .)
  3. Apply battery positive voltage to the power outside mirror terminals and inspect the operation of the power outside mirror.
    • If not as specified, replace the power outside mirror.
      Fig 1: Power Outside Mirror Inspection (1 Of 2)
      G01908071Courtesy of MAZDA MOTORS CORP.

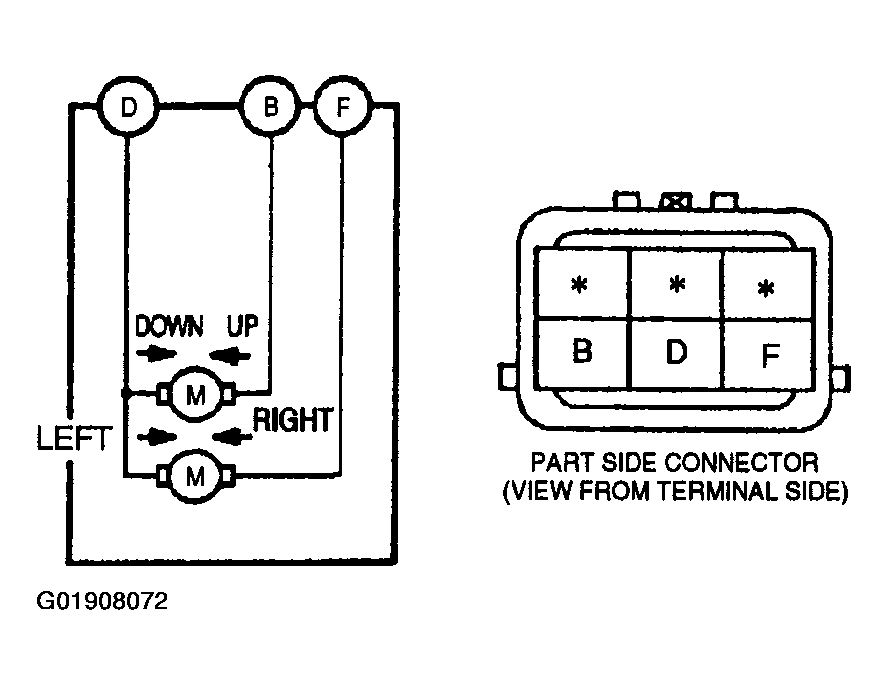

      Fig 2: Power Outside Mirror Inspection (2 Of 2)
      G01908072Courtesy of MAZDA MOTORS CORP.
