Transmitter Battery Replacement

Insert a small flathead screwdriver into the slot and gently pry open the transmitter.

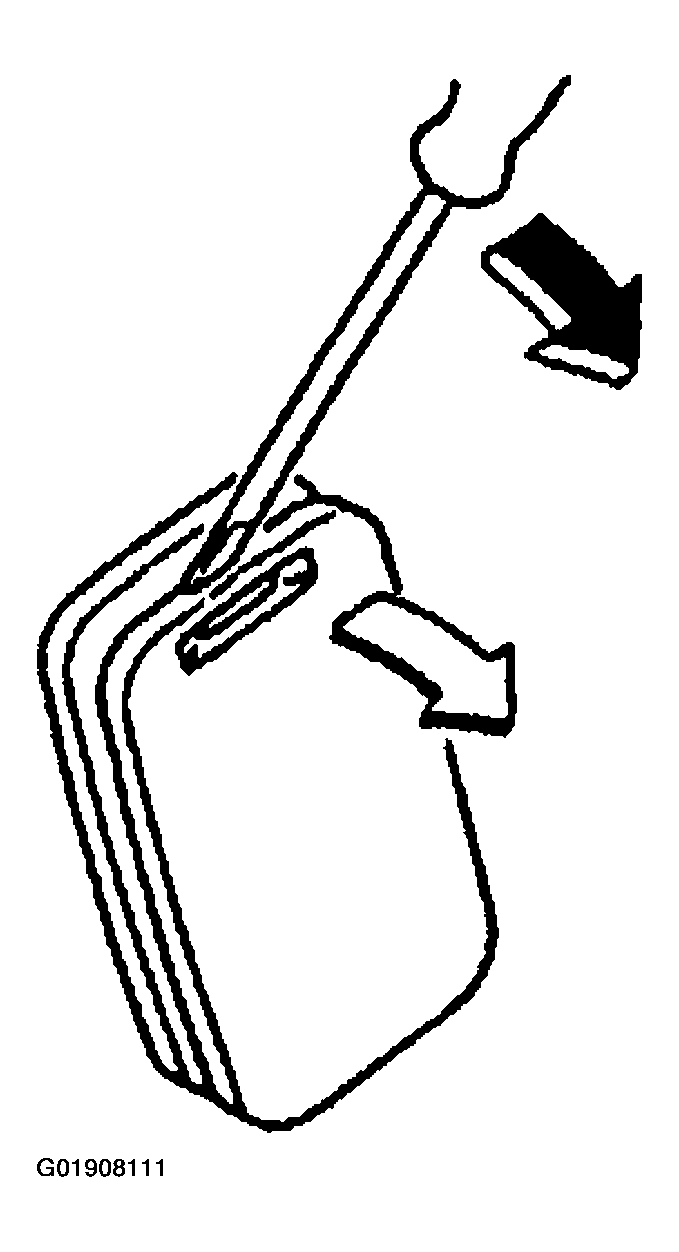

Fig 1: Prying Open Transmitter With Small Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.
Press the portion of the battery indicated by A and remove the battery.
Install a new battery (CR2025 or the equivalent) into the front portion of the holder with the positive pole (+) facing up. Press on the B portion of the battery to set the battery.

Fig 2: Identifying Transmitter Battery
Courtesy of MAZDA MOTORS CORP.
1. A Battery specification Lithium CR2025 x 1
NOTE:
- The batteries will last about 2 years when used 10 times a day.

  Fig 3: Aligning Front & Back Covers to Close Transmitter
  Courtesy of MAZDA MOTORS CORP.
Align the front and back covers and snap the transmitter shut.
