Transmission/Transaxle Technical Data

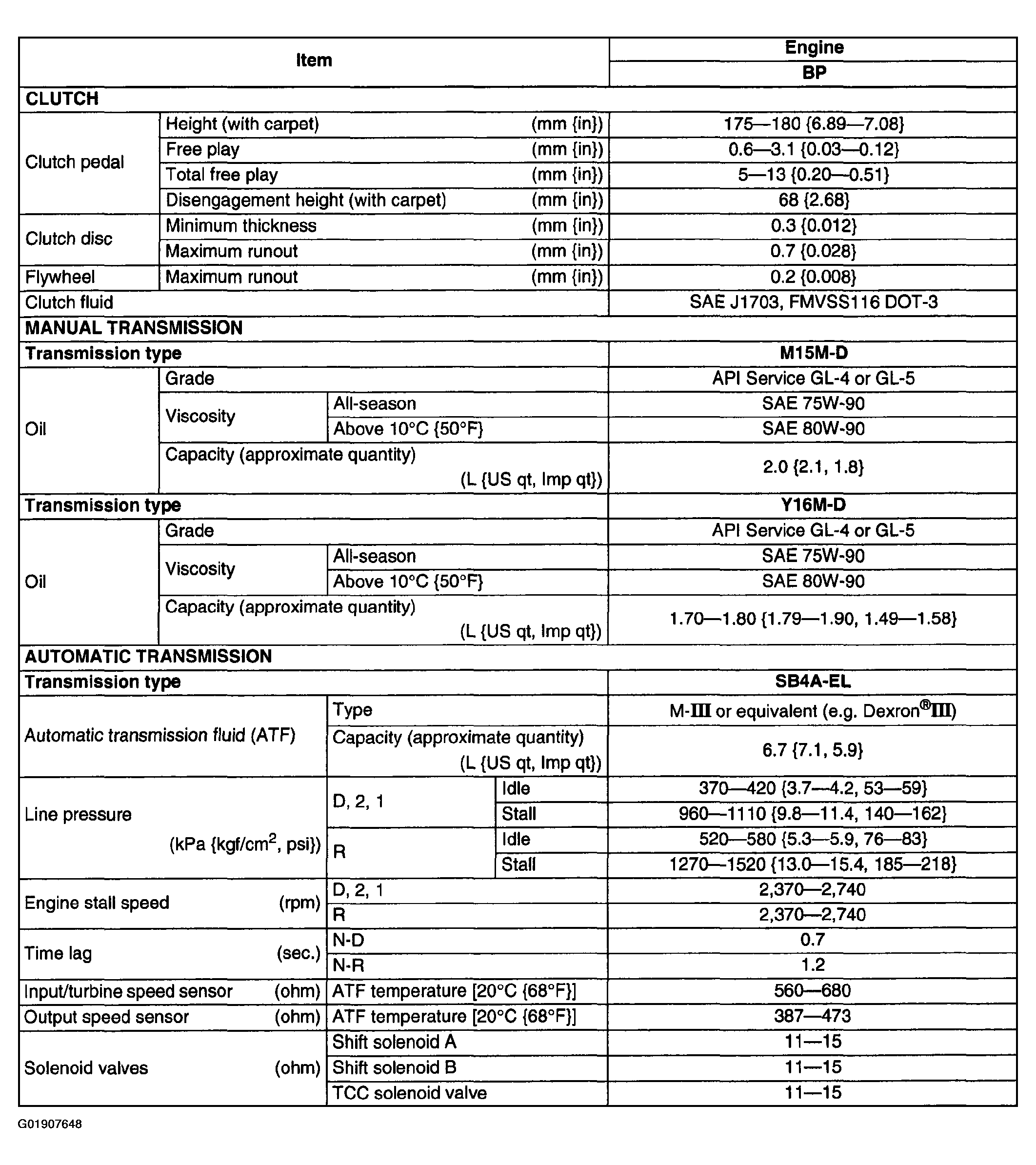

Fig 1: Transmission/Transaxle Technical Data Table

G01907648

Courtesy of MAZDA MOTORS CORP.
