P Position Switch Inspection

Disconnect the negative battery cable.
Remove the rear console.
Remove the screws and lift up the indicator panel.
Disconnect the P position switch connector.

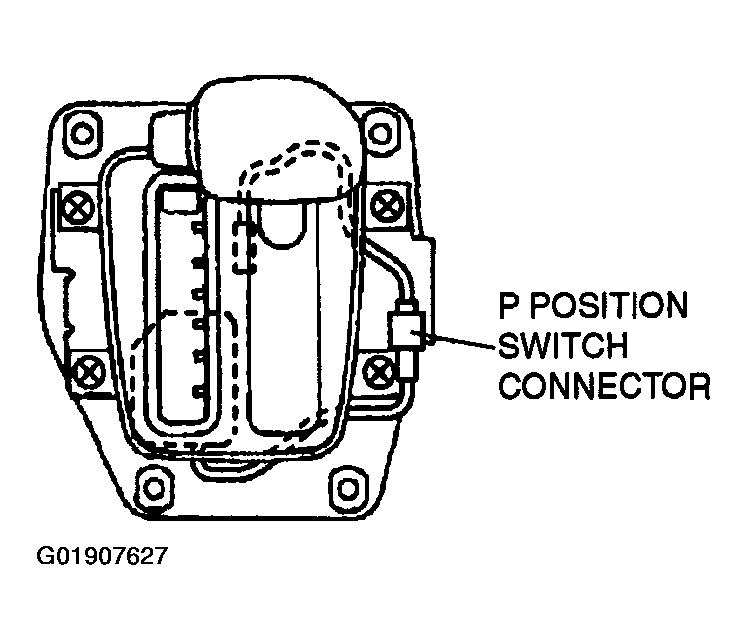

Fig 1: Disconnecting P Position Switch Connector
Courtesy of MAZDA MOTORS CORP.
Inspect for continuity between the terminals A and B.
- If not as specified, replace the P position switch.
Fig 2: Inspecting P position Switch (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

Fig 3: Inspecting P position Switch (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Connect the P position switch connector.
Adjust the indicator panel. Install the screws in the order shown in the figure.
Tightening torque
1. 1.5-2.4 N.m {16-24 kgf.cm, 14-21 in.lbf}
Fig 4: Identifying Indicator Panel Installation Screws In Order
Courtesy of MAZDA MOTORS CORP.
Install the rear console.
Connect the negative battery cable.
