Cutback Valve

The cutback valve adjusts the cutback pressure which acts on the throttle valve. The cutback valve operates with the line pressure from the 1-2 shift valve and the throttle pressure. The cutback pressure's effect on the throttle valve reduces the throttle pressure and prevents the oil pump from losing power unnecessarily.

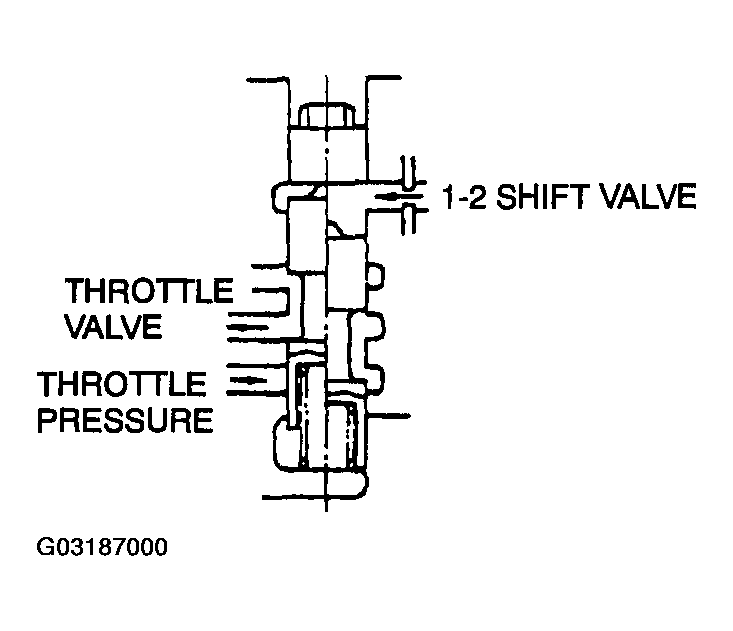

Fig 1: Cutback Valve Operation
Courtesy of MAZDA MOTORS CORP.
