Control Valve Component Location

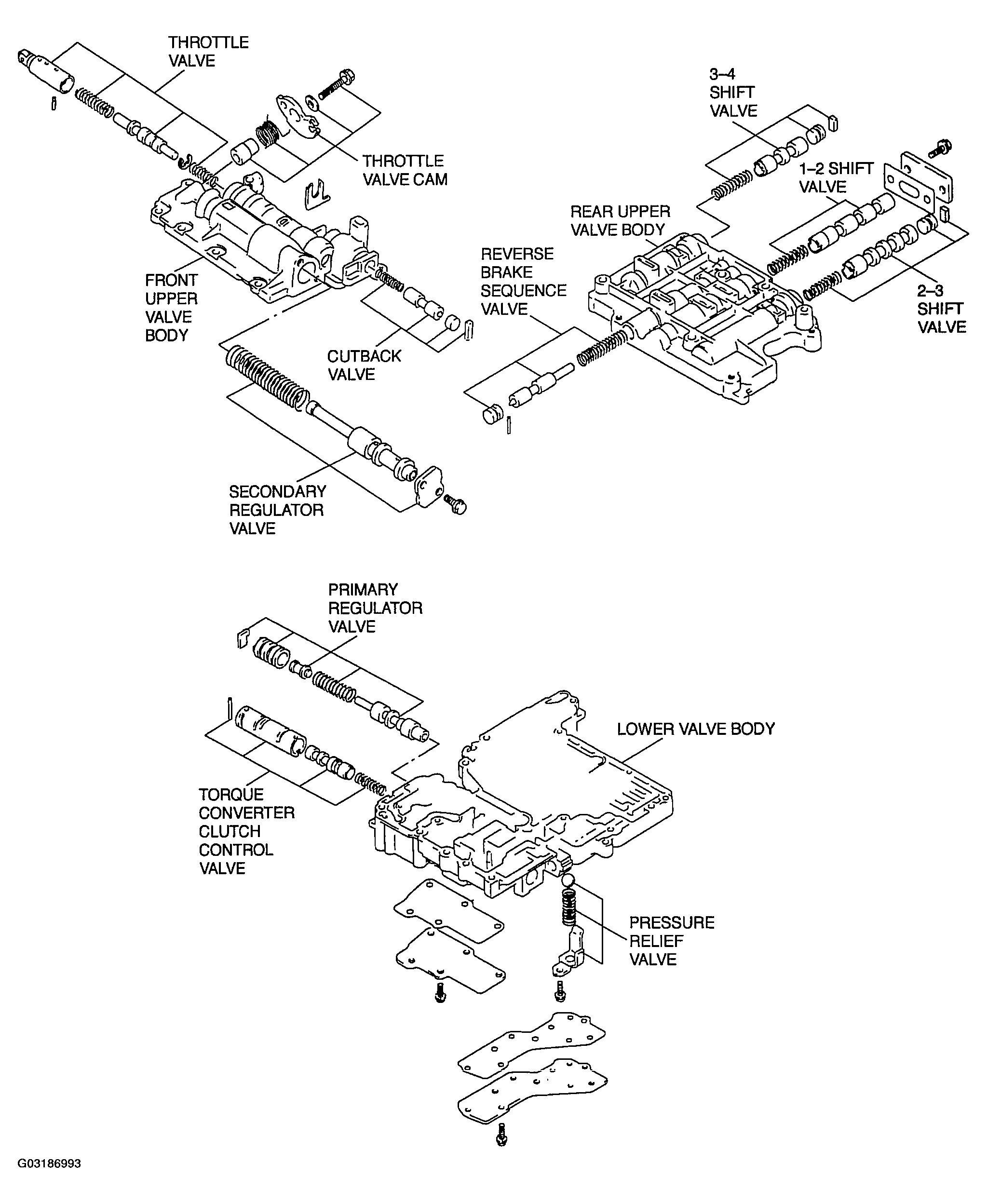

Fig 1: Identifying Control Valve Components

G03186993

Courtesy of MAZDA MOTORS CORP.
