Direct Clutch Disassembly/Assembly: Notes

  1. Carry out the preinspection before disassembly. (Refer to AUTOMATIC TRANSMISSION INSPECTION  , DIRECT CLUTCH PREINSPECTION  .)
  2. Disassemble in the order indicated in the figure.

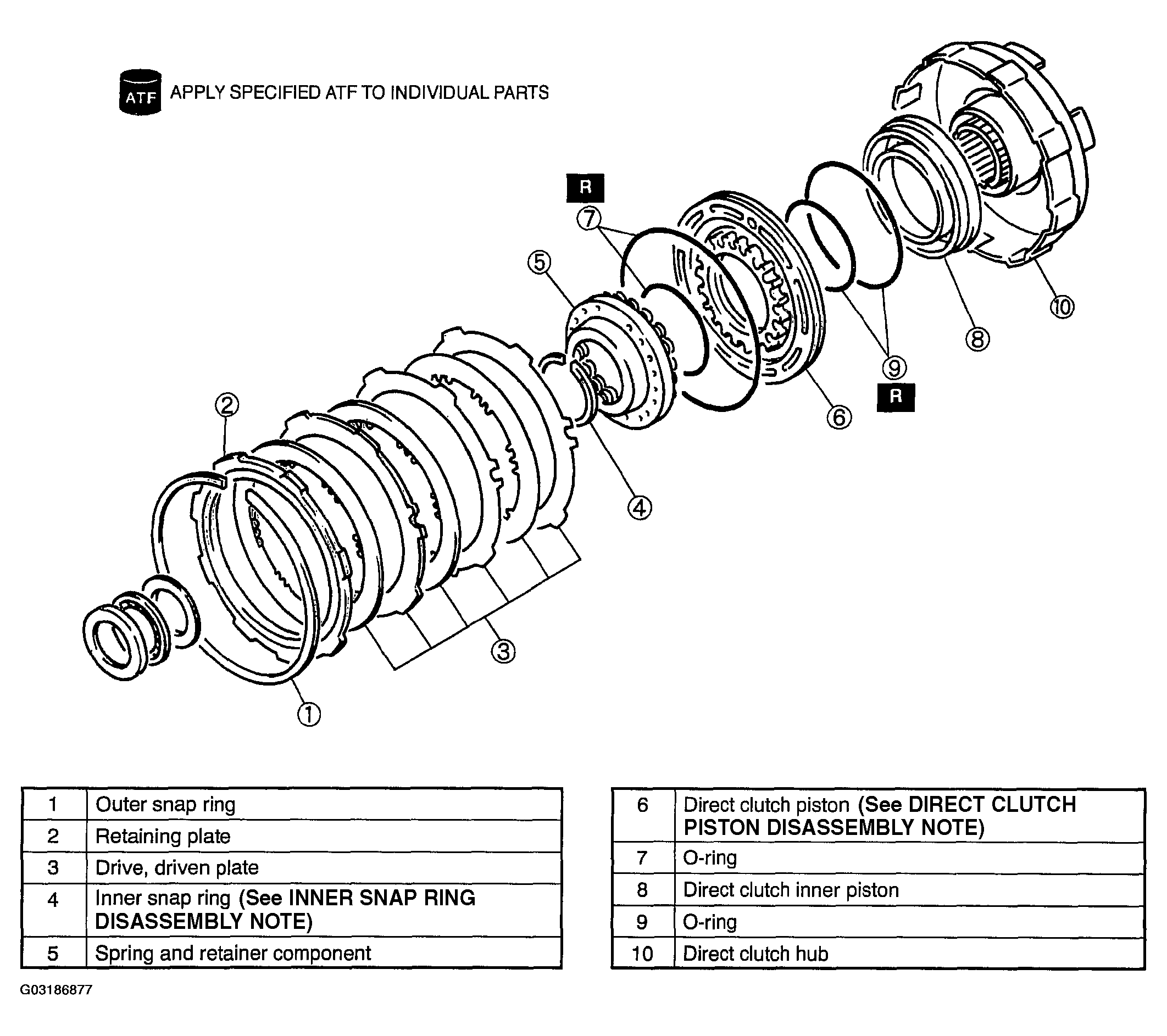

    3. Fig 1: Disassembling/Assembling Direct Clutch
    G03186877Courtesy of MAZDA MOTORS CORP.
  3. Assemble in the reverse order of disassembly.
