Control Valve Body Assembly

  1. Verify that all parts are clean and free of dust and other small particles.
  2. Apply ATF to all parts.
  3. Assemble in the reverse order.

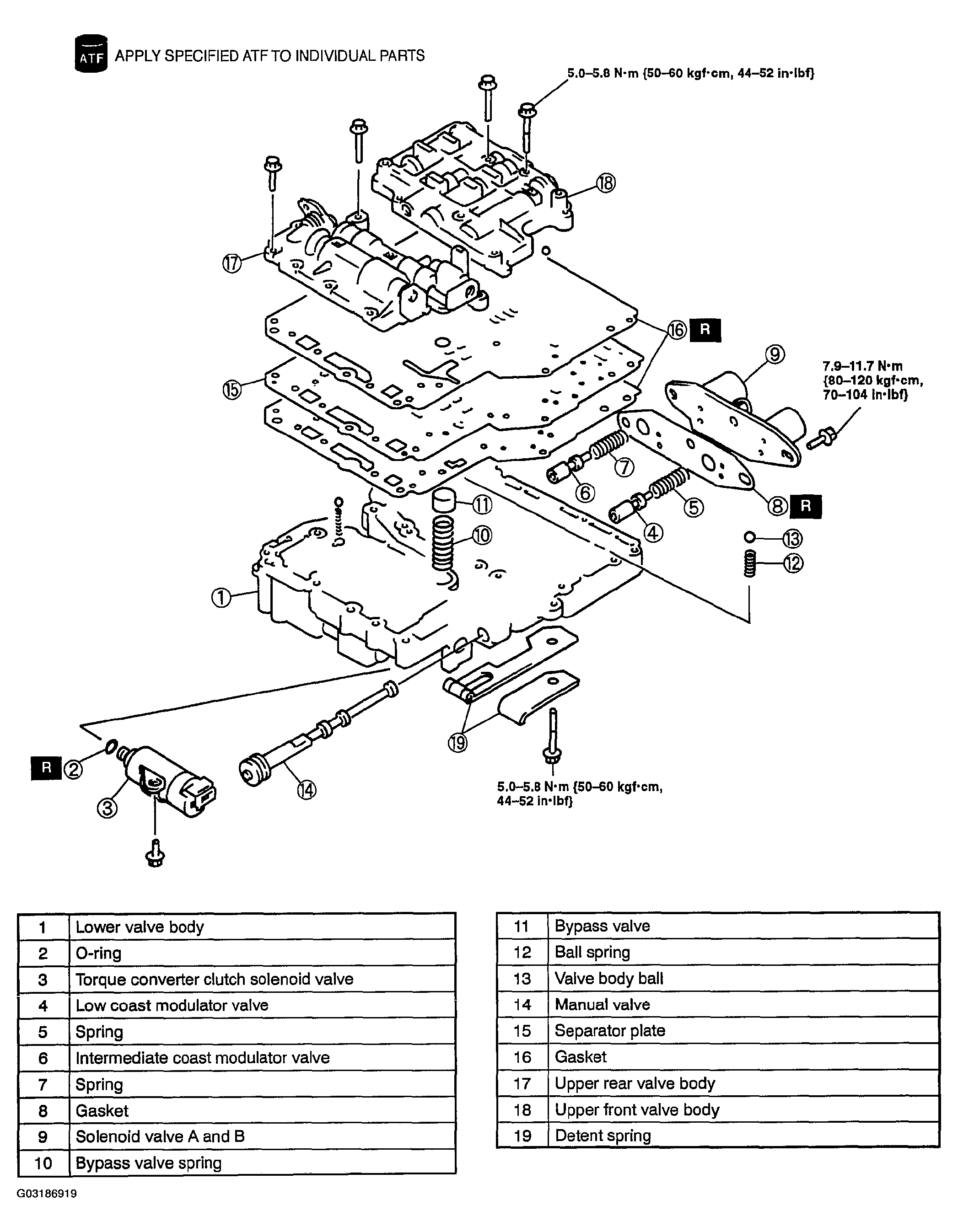

    Fig 1: Assembling Control Valve Body
    G03186919Courtesy of MAZDA MOTORS CORP.
