Total Toe-in Adjustment

CAUTION:
  • Adjust the toe-in before adjusting the camber.
  1. Loosen the front and/or rear cam nuts.
  2. Turn the front and/or rear adjusting cam bolts equally to provide the correct toe-in.

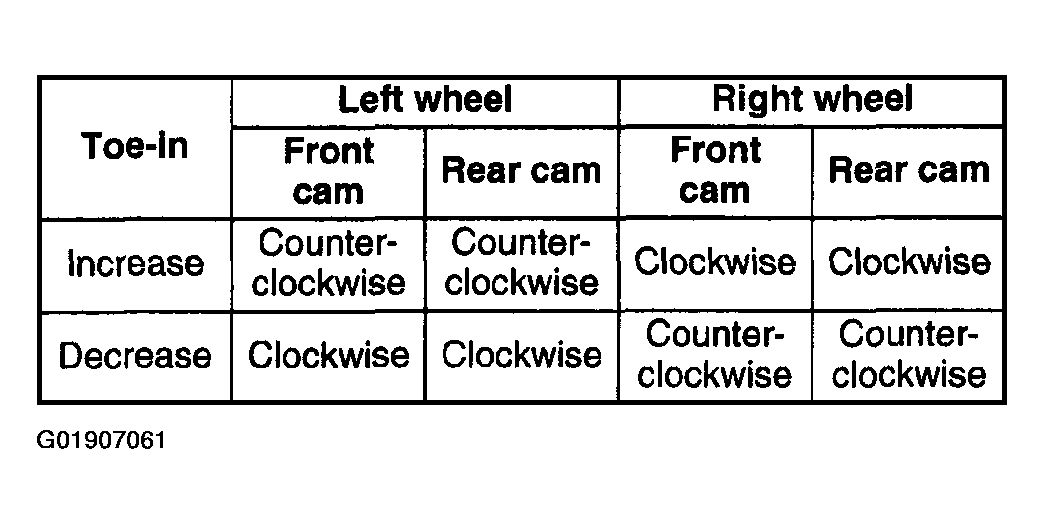

    Fig 1: Toe-In Adjusting Table
    G01907061Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Turning the front cam one graduation changes the toe-in about 2.3 mm {0.1 in} and the camber about 13'. Turning the rear cam NE graduation changes the toe-in about 2.3 mm {0.1 in} and the amber about 8'.
  3. Adjust the camber.

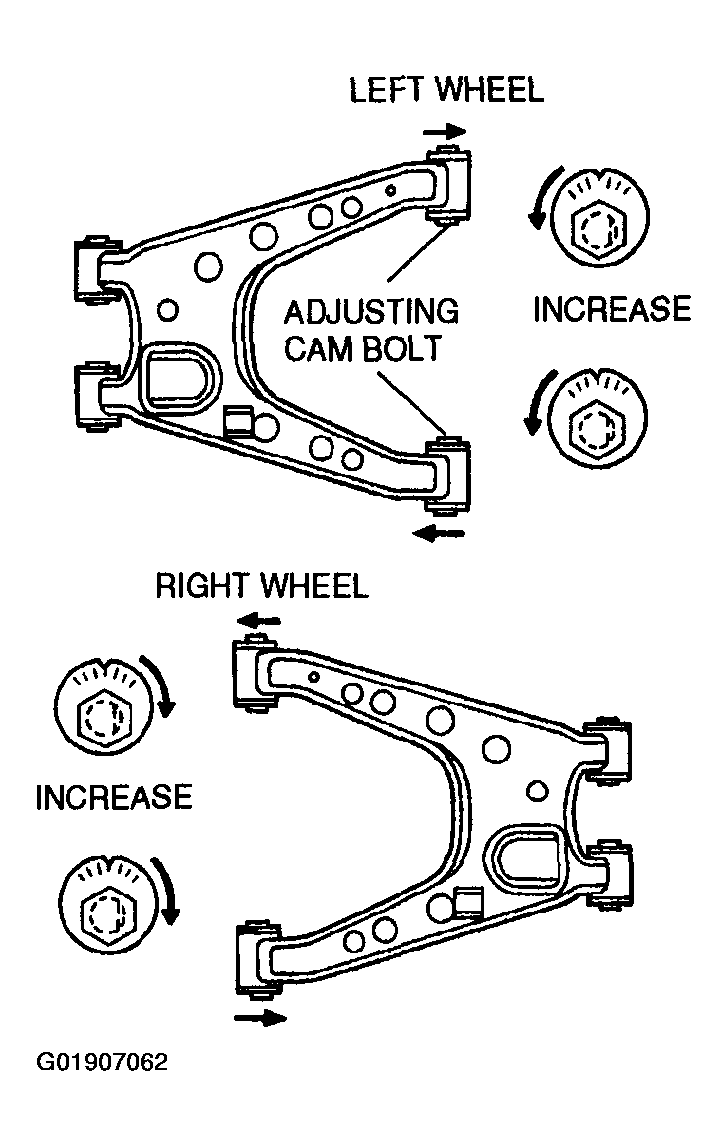

    Fig 2: Adjusting Toe-In
    G01907062Courtesy of MAZDA MOTORS CORP.
