Mazda
>>
2003
>>
MX-5 Miata LS, Automatic
>>
Repair and Diagnosis
>>
Suspension
>>
Wheel Alignment
>>
Front Wheel Alignment
>>
Specification (Unloaded)
Specification (Unloaded)

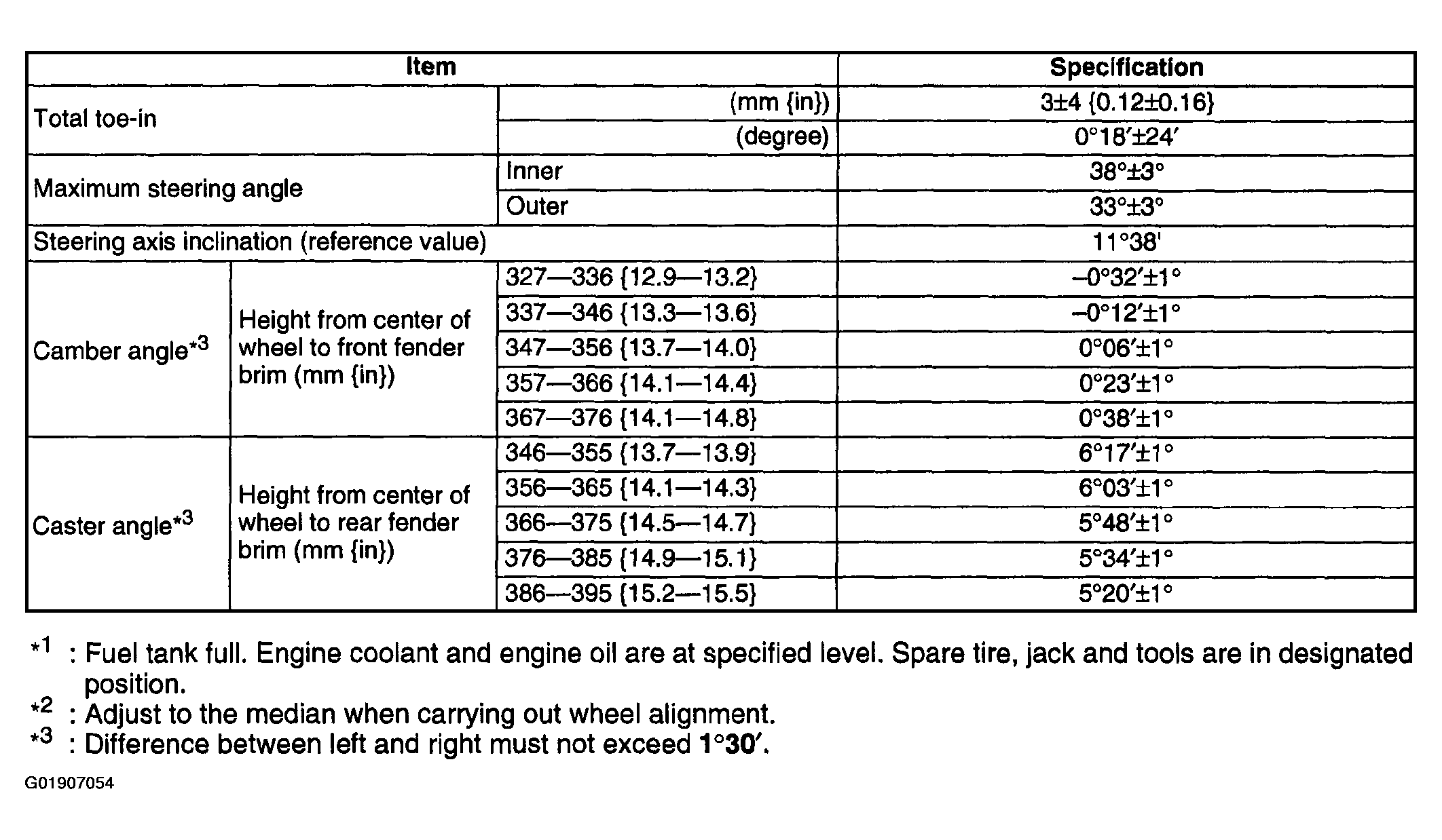

Fig 1: Front Wheel Alignment Specification (Unloaded)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
