Power Steering Oil Pump Disassembly/Assembly: Notes

  1. The following procedure is for replacement of the O-rings only. Replace the pump component if other repairs are necessary.
  2. Disassembly in the order indicated in the table.

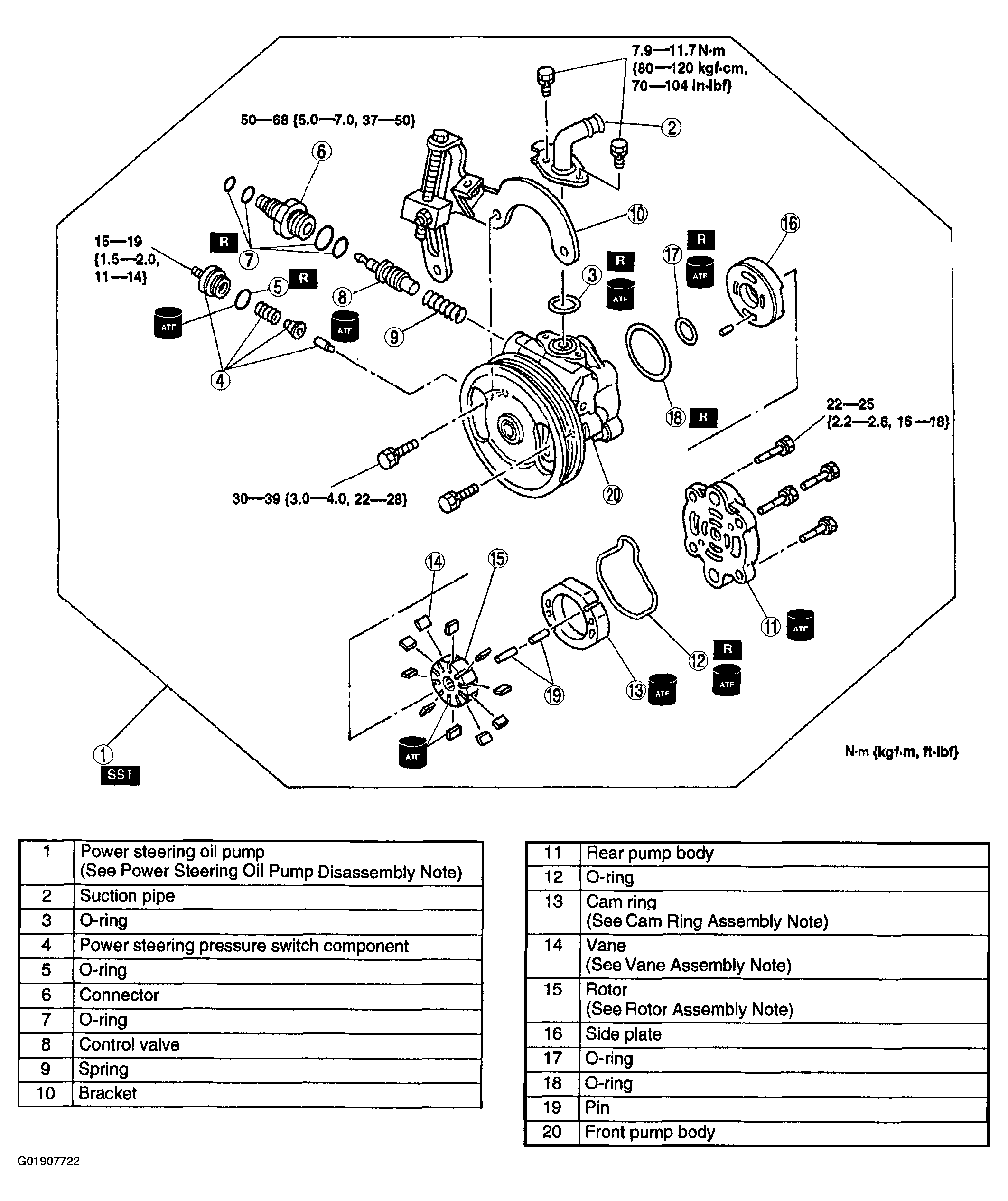

    Fig 1: Disassembly Order Of Power Steering Oil Pump
    G01907722Courtesy of MAZDA MOTORS CORP.
  3. Assemble in the reverse order of disassembly.
