Oil Pump Disassembly/Assembly: Notes

  1. Remove the oil pump. (See OIL PUMP REMOVAL/INSTALLATION  .)
  2. Disassemble in the order indicated in the figure.
    Fig 1: Oil Pump Disassembling Order
    G01906764Courtesy of MAZDA MOTORS CORP.

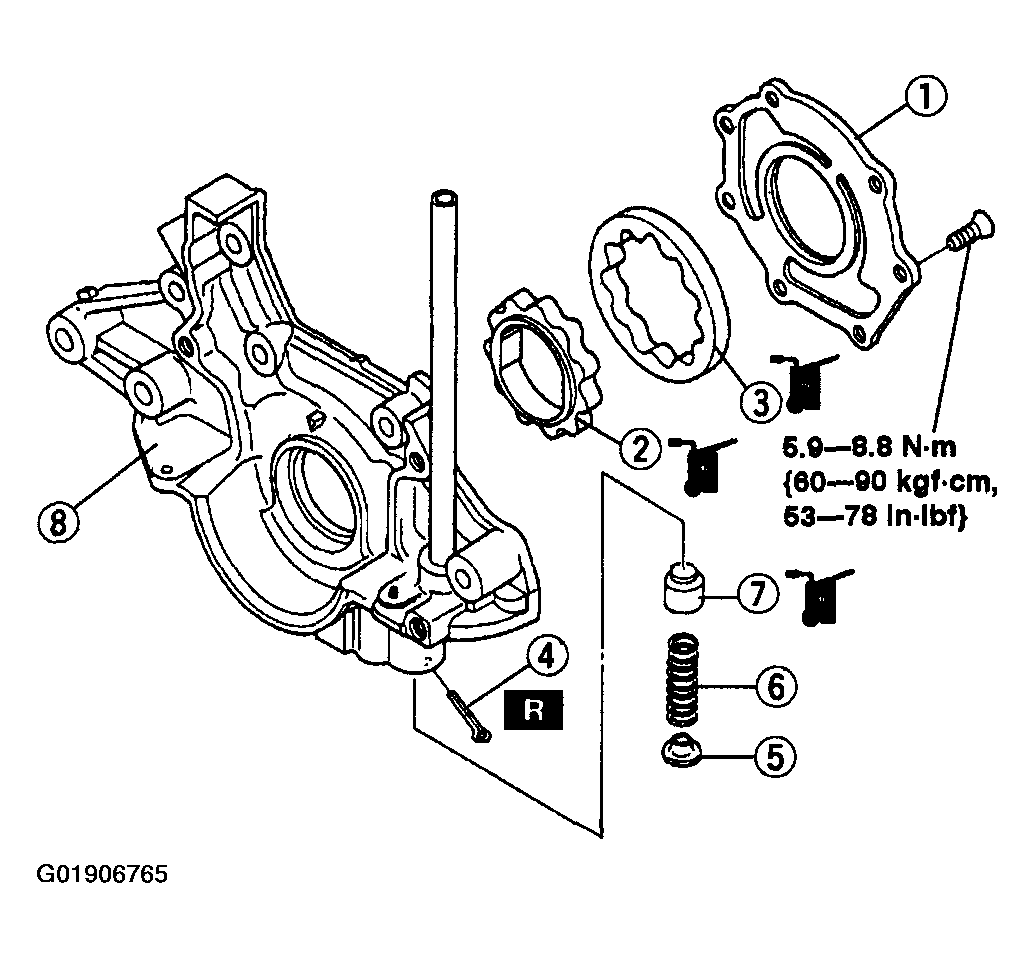

    Fig 2: Disassembling/Assembling Oil Pump
    G01906765Courtesy of MAZDA MOTORS CORP.
  3. Assemble in the reverse order of disassembly.
