Instrument Cluster Disassembly/Assembly

CAUTION:
  • If the instrument cluster is dropped or damaged, the system will not work properly and it may be the cause of trouble or malfunction.
  1. Disassemble in the order indicated in the table.

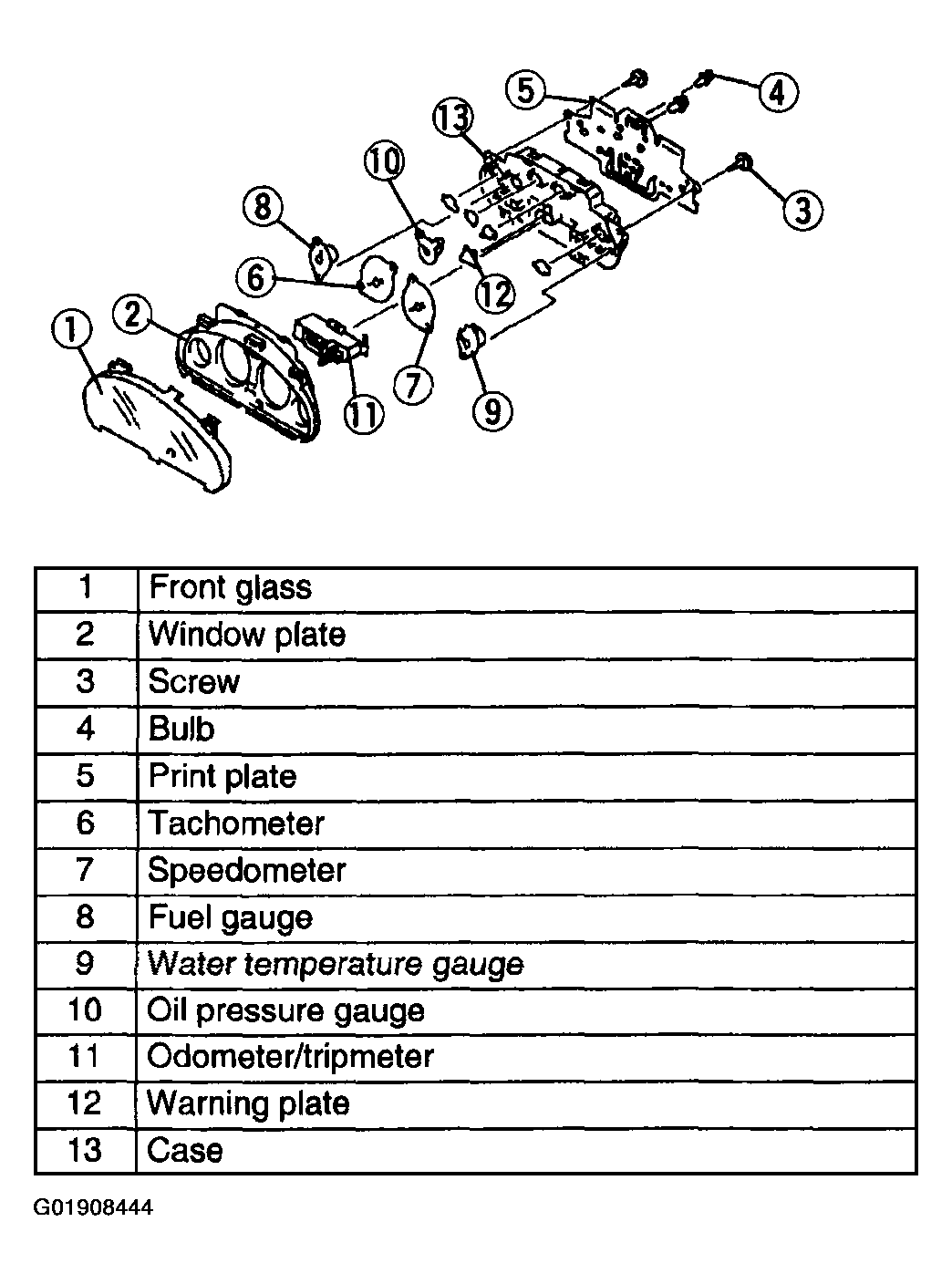

    Fig 1: Disassembling Instrument Cluster
    G01908444Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
