TP Sensor And EGR Boost Sensor Connector End View
TP Sensor And EGR Boost Sensor Connector End View

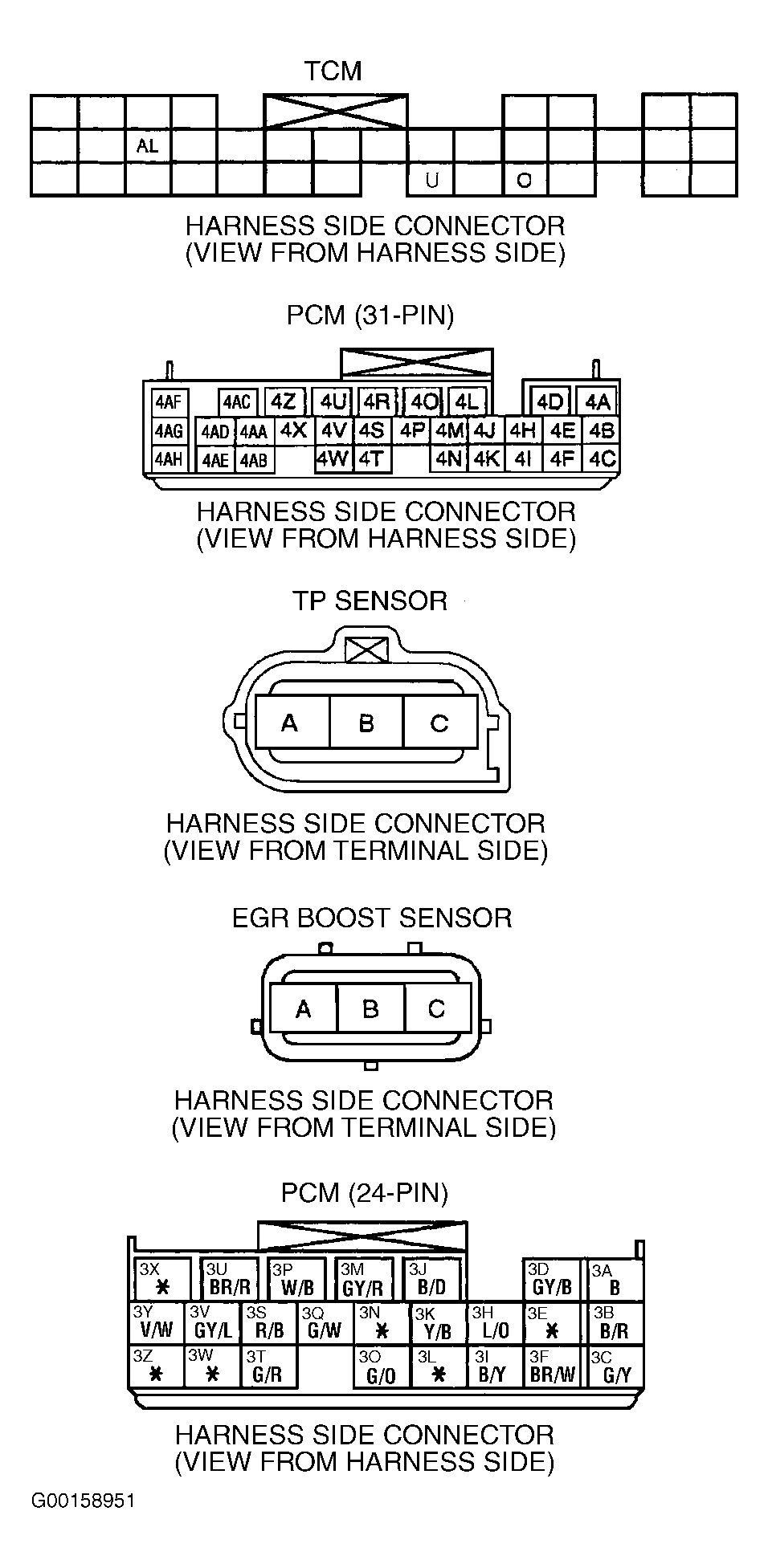

Fig 1: TP Sensor And EGR Boost Sensor Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
