Instrument Cluster, Transmission Control Module, Vehicle Speed Sensor & Output Speed Sensor Connector End View

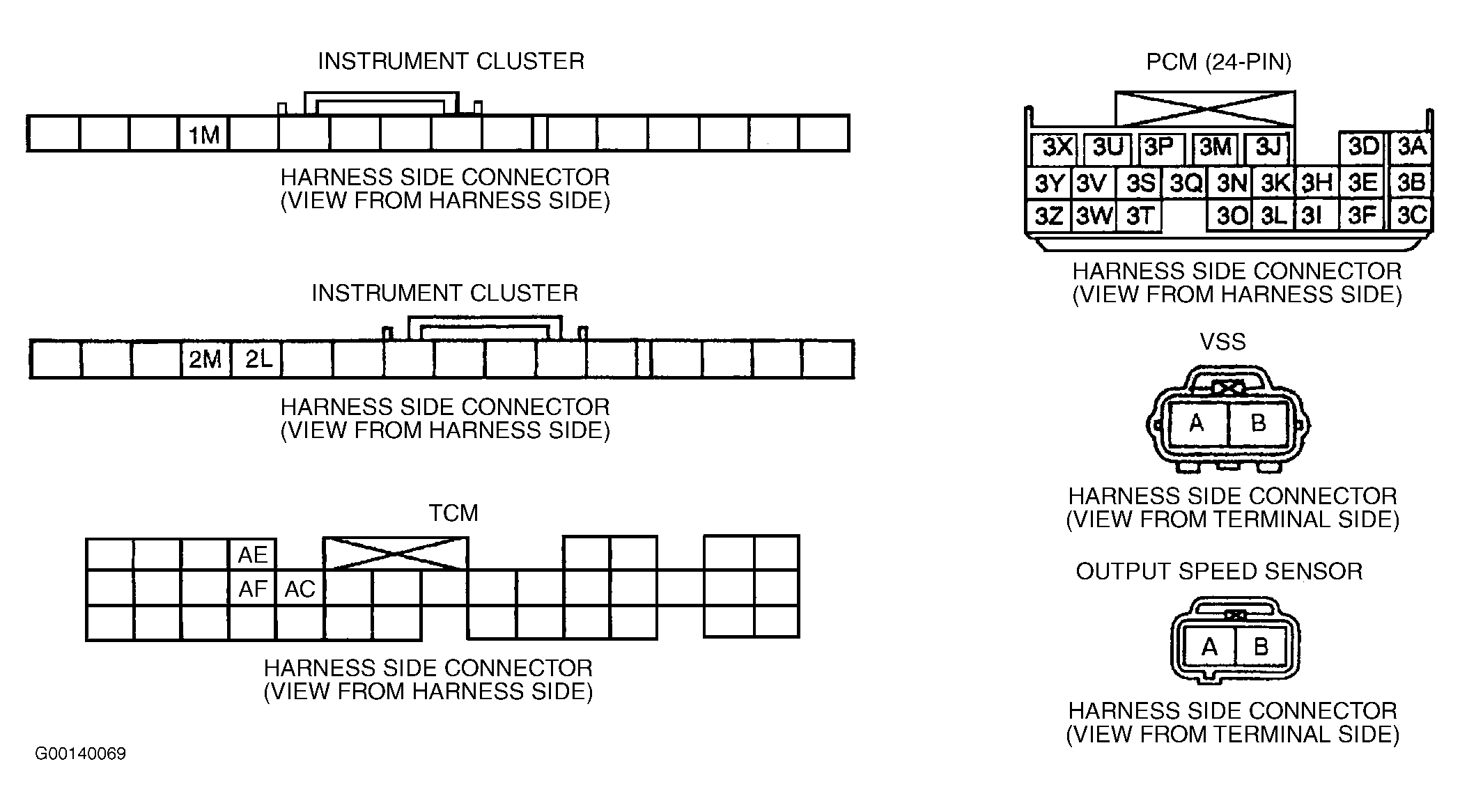

Fig 1: Instrument Cluster, Transmission Control Module, Vehicle Speed Sensor & Output Speed Sensor Connector End View
G00140069Courtesy of MAZDA MOTORS CORP.
