Rear Abs Wheel-Speed Sensor Removal/Installation

  1. Remove in the order indicated in the table.

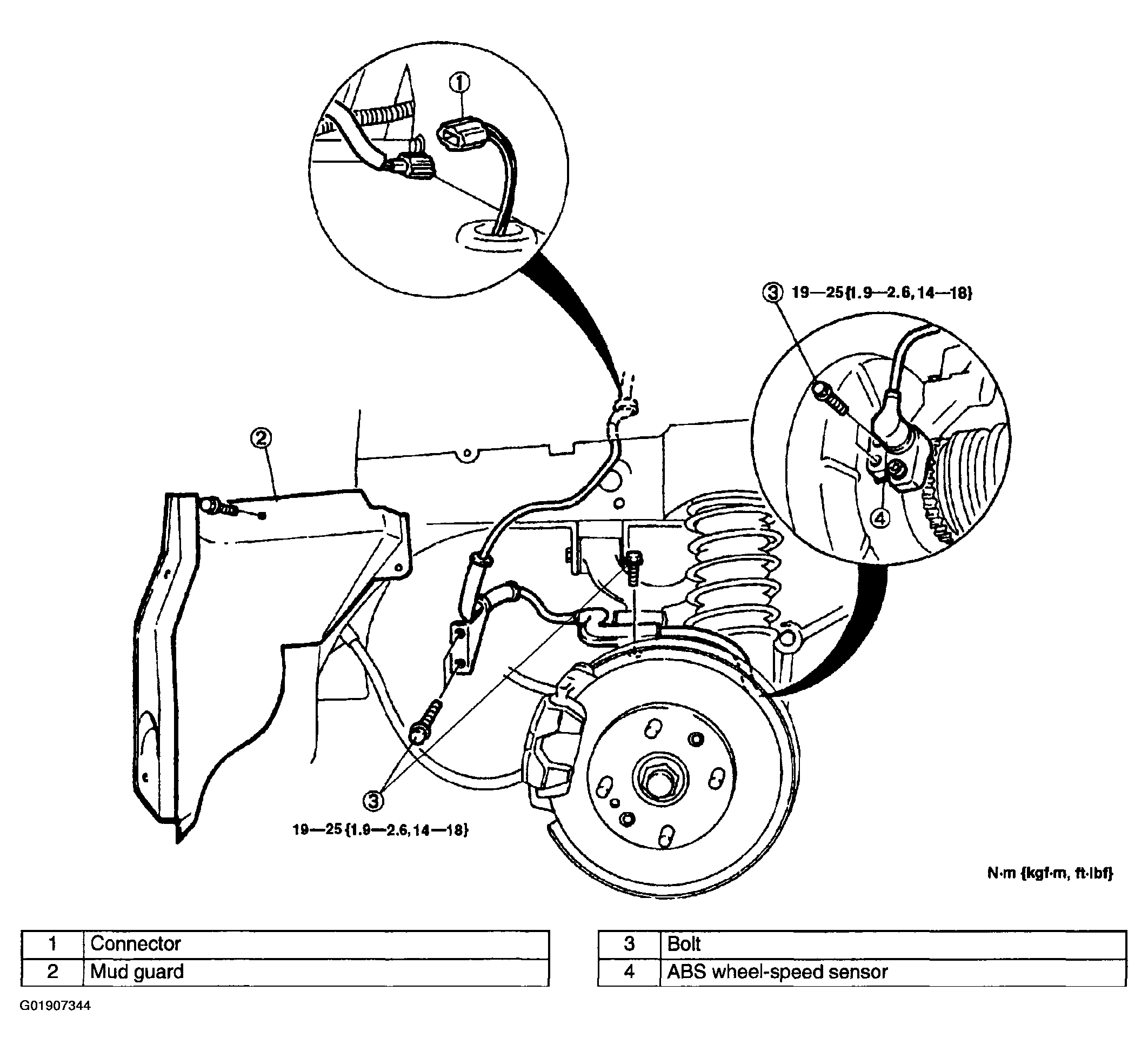

    Fig 1: Removal Order Of Rear ABS Wheel-Speed Sensor
    G01907344Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
