Trunk Lid Lock And Opener Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)
  3. Remove the rear package trim. (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
  4. Remove the rear end mat.
  5. Remove the driver's side trunk side trim.
  6. Remove the trunk end trim.
  7. Remove the rear bumper. (See REAR BUMPER REMOVAL/INSTALLATION .)
  8. Remove in the order indicated in the illustration.

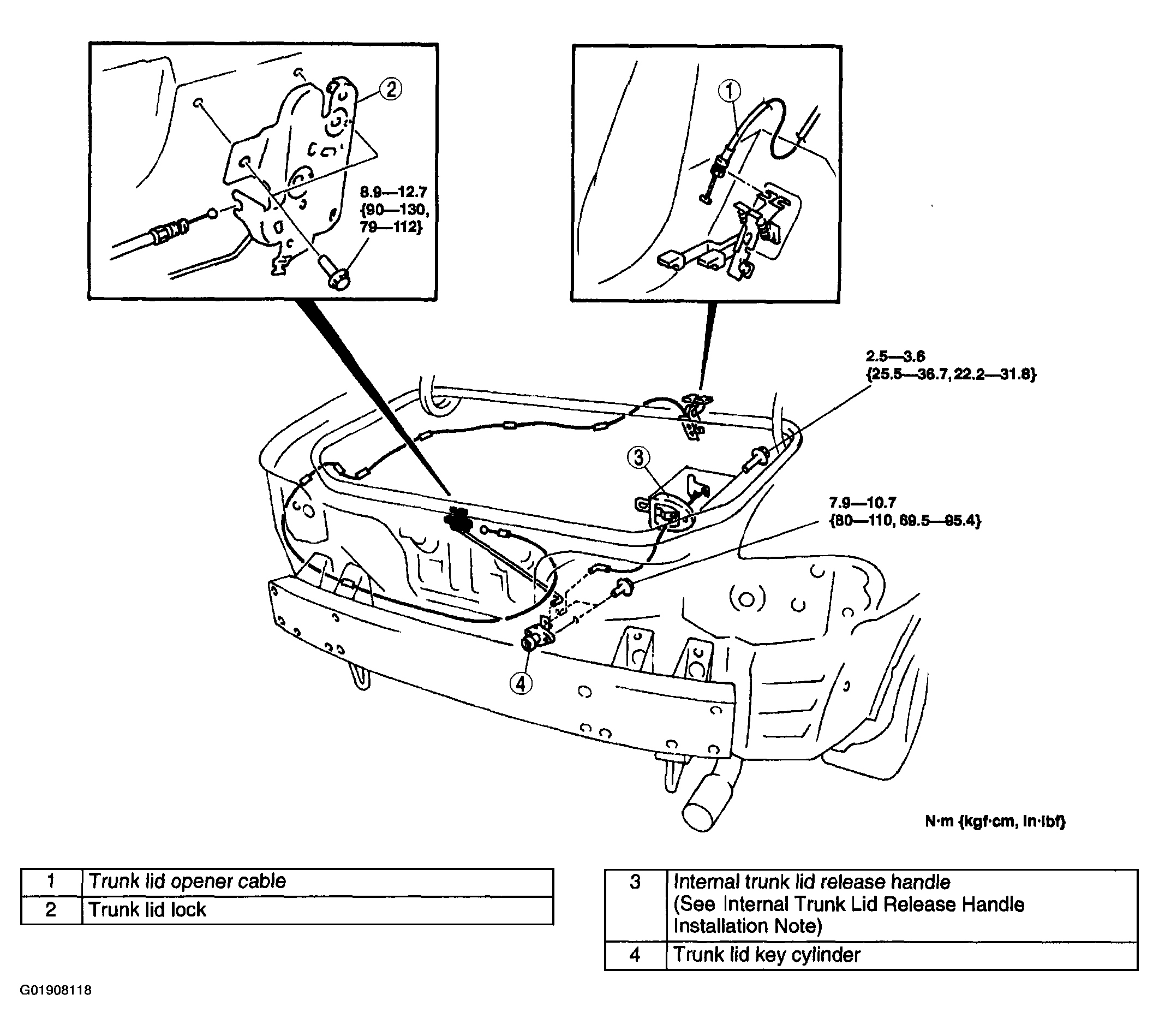

    Fig 1: Trunk Lid Lock And Opener Removal Sequence
    G01908118Courtesy of MAZDA MOTORS CORP.
  9. Install in the reverse order of removal.
  10. Adjust the trunk lid. (See TRUNK LID ADJUSTMENT .)
