Brake Switch Inspection

  1. Disconnect the brake switch connector.
  2. Inspect for continuity between the terminals of the brake switch connector using the circuit tester.
    • If not as specified, replace the brake switch.

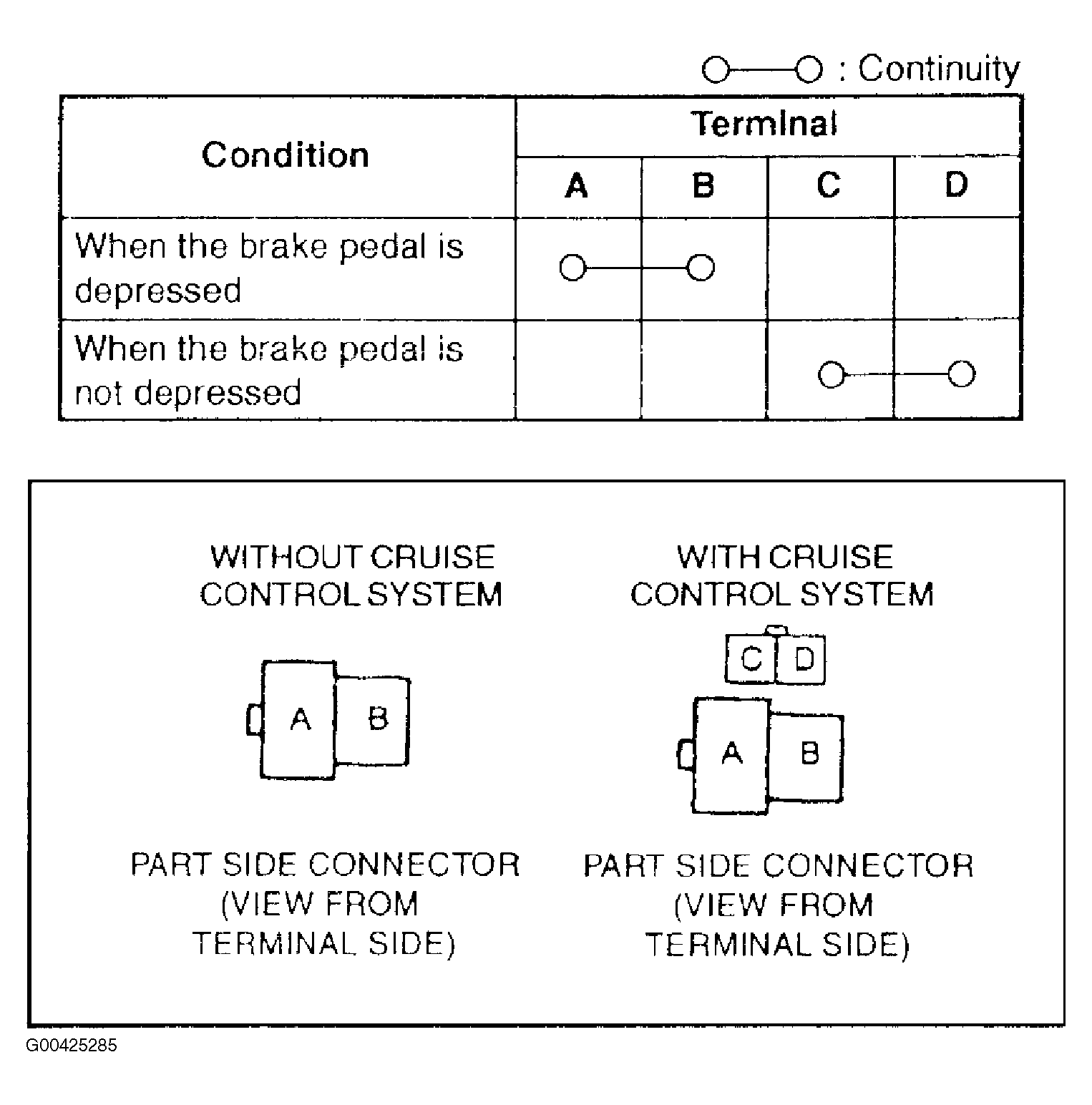

Fig 1: Brake Switch Continuity Table & Connector Views
G00425285Courtesy of MAZDA MOTORS CORP.
