Camber Adjustment

CAUTION:

Adjust the camber after adjusting the toe-in.

Loosen the front and rear cam nuts.
Turn the front and rear adjusting cam bolts the same amount in the opposite direction equally to provide the correct camber angle.

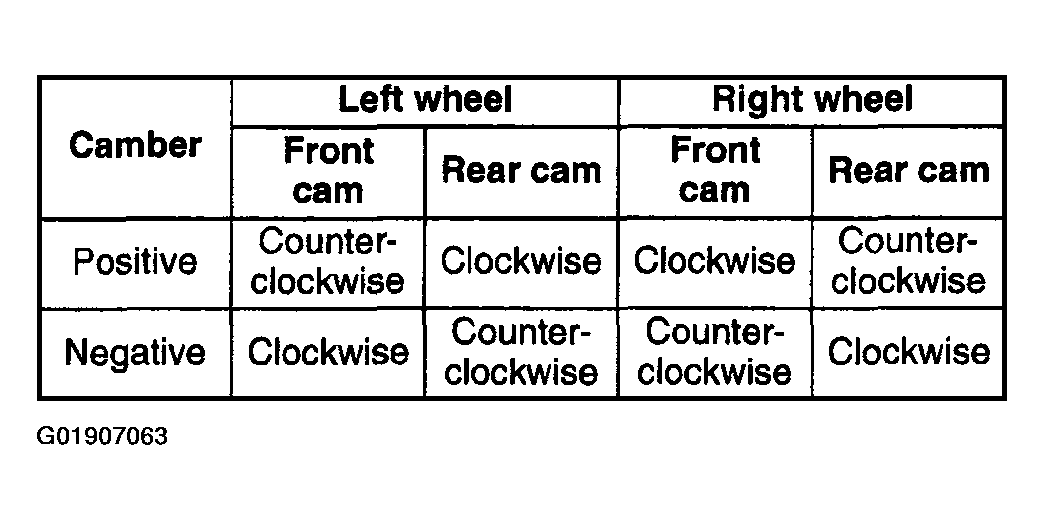

Fig 1: Camber Adjusting Table (After Adjusting Toe-In)
Courtesy of MAZDA MOTORS CORP.

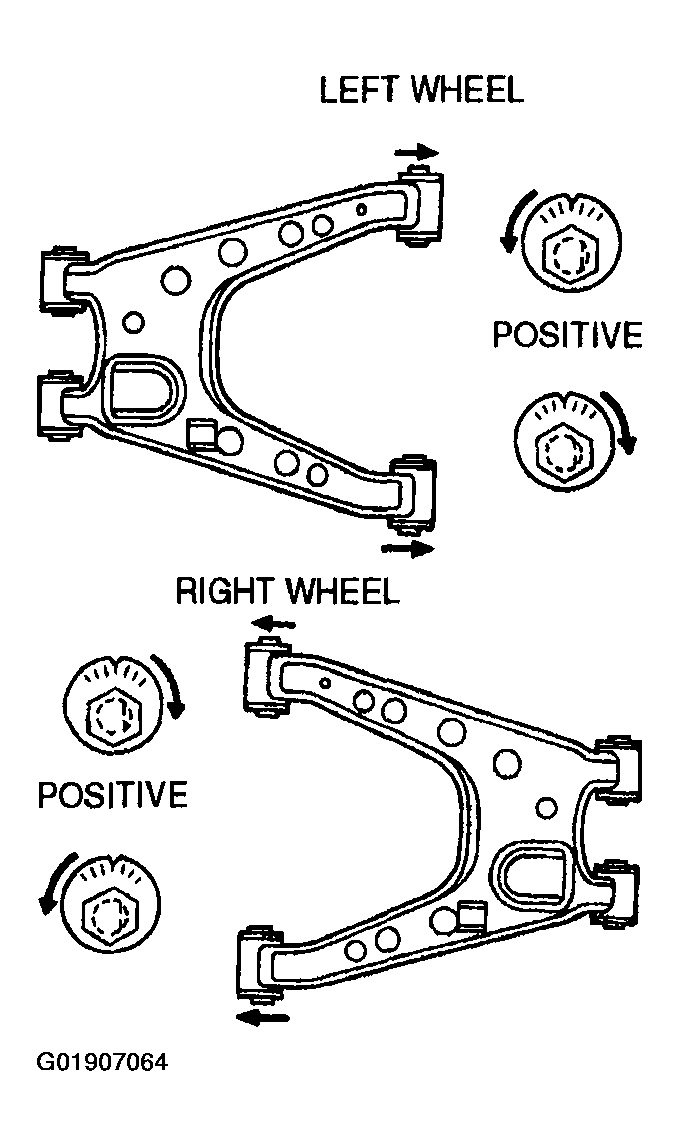

Fig 2: Adjusting Camber (After Adjusting Toe-In)
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Turning the front cam one graduation changes the camber about 13' and the toe-in about 2.3 mm {0.1 in}. Turning the rear cam one graduation changes the camber about 8' and the toe-in about 2.3 mm {0.1 in}.
- If the cam cannot be turned far enough to make the adjustment, begin adjustment of the toe-in again using the other cam.
Tighten the nuts.
Tightening torque
1. 73-95 N.m {54-70 ft.lbf}
