Mazda
>>
2003
>>
MX-5 Miata Base, Standard
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Service Tools (Steering)
>>
Steering SST
Steering SST

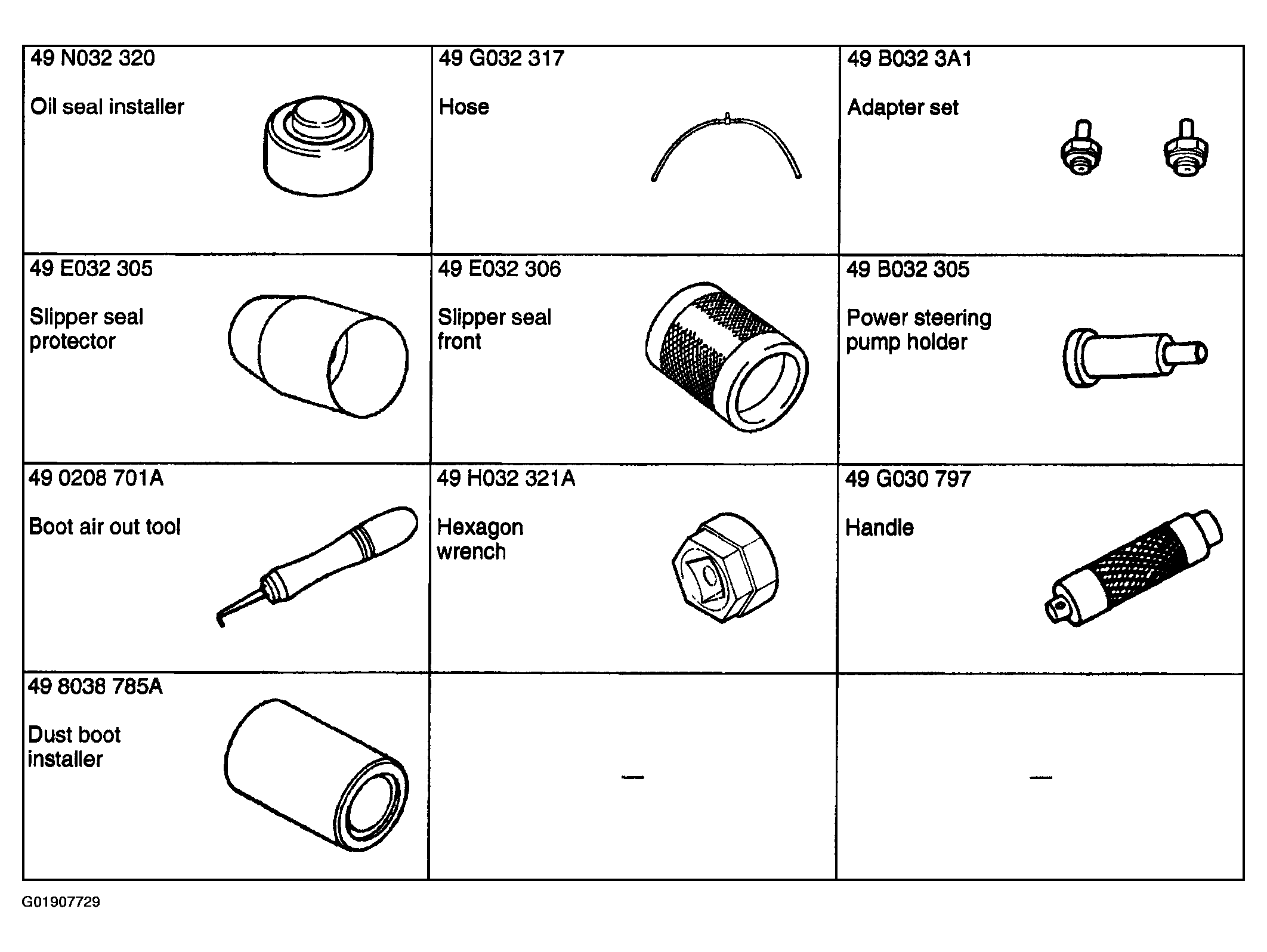

Fig 1: Identifying Steering Special Service Tools (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

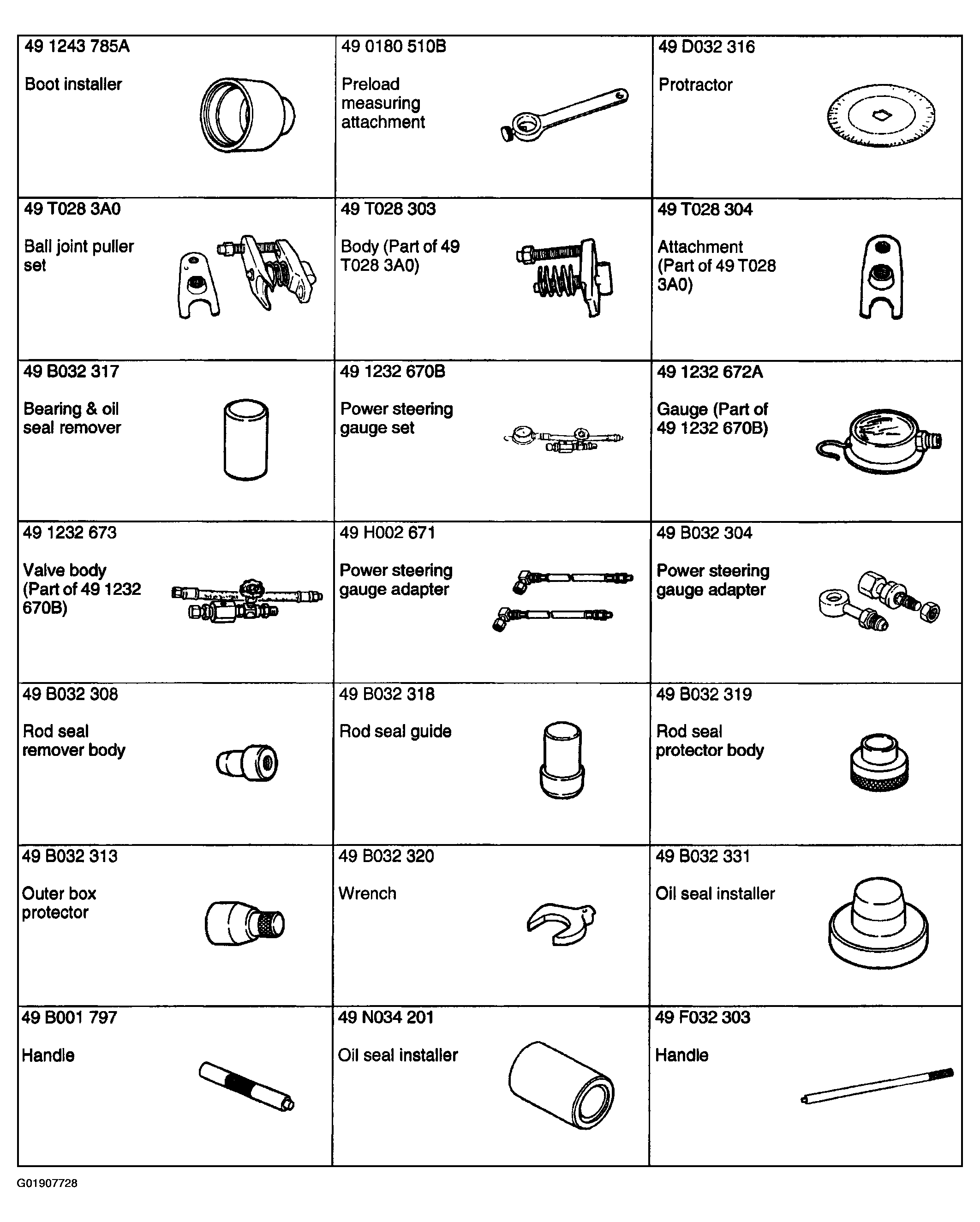

Fig 2: Identifying Steering Special Service Tools (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
