Front Oil Seal Replacement: Notes

  1. Remove the timing belt. (See TIMING BELT REMOVAL/INSTALLATION  .)
  2. Remove in the order indicated in the table.

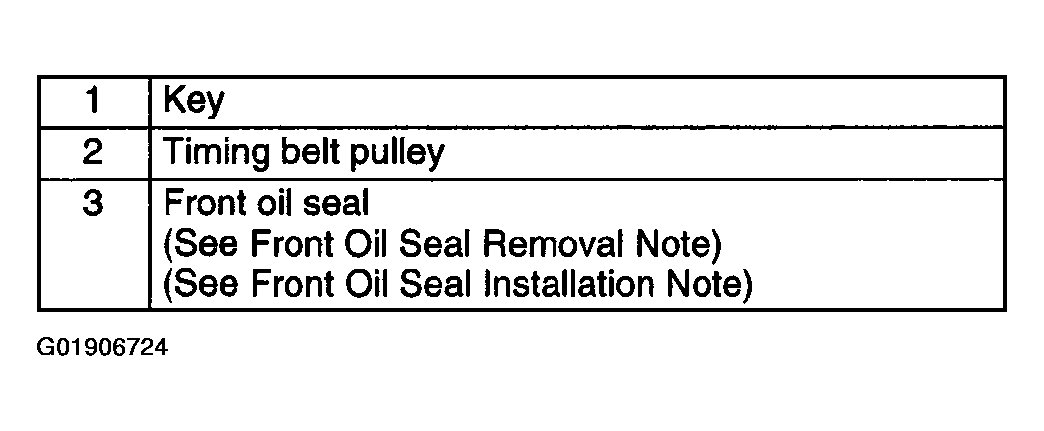

    Fig 1: Front Oil Seal Removal Order Table
    G01906724Courtesy of MAZDA MOTORS CORP.

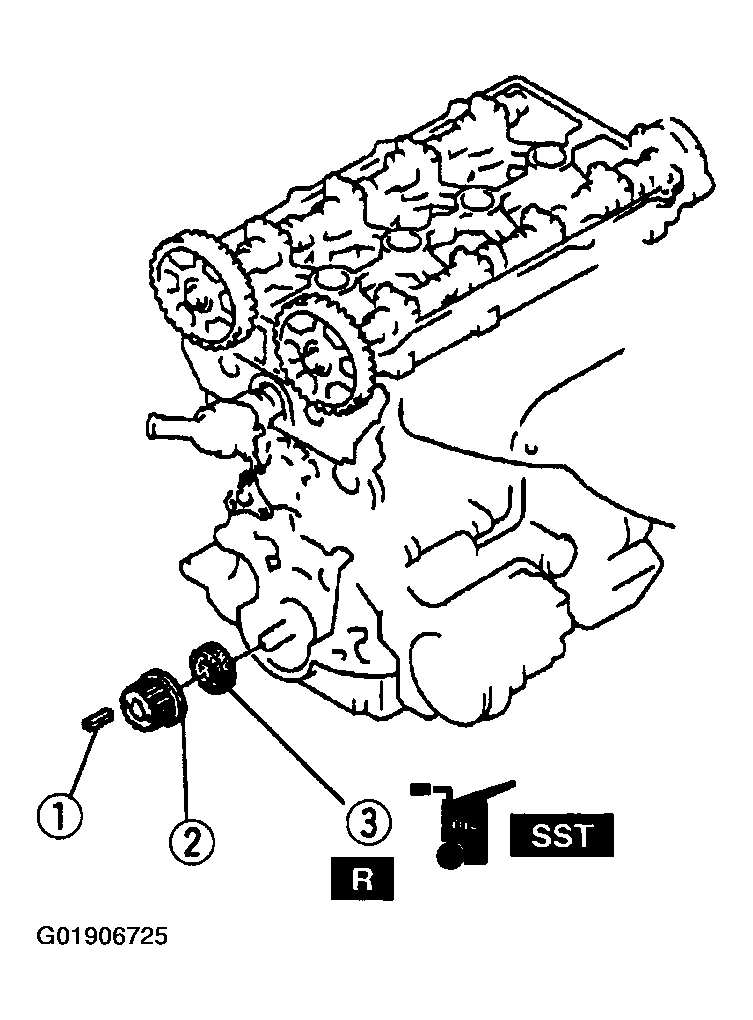

    Fig 2: Removing/Installing Front Oil Seal
    G01906725Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
