Water Outlet Pipe Installation Note

  1. Install the water outlet pipe gasket so that the print area faces the cylinder head.

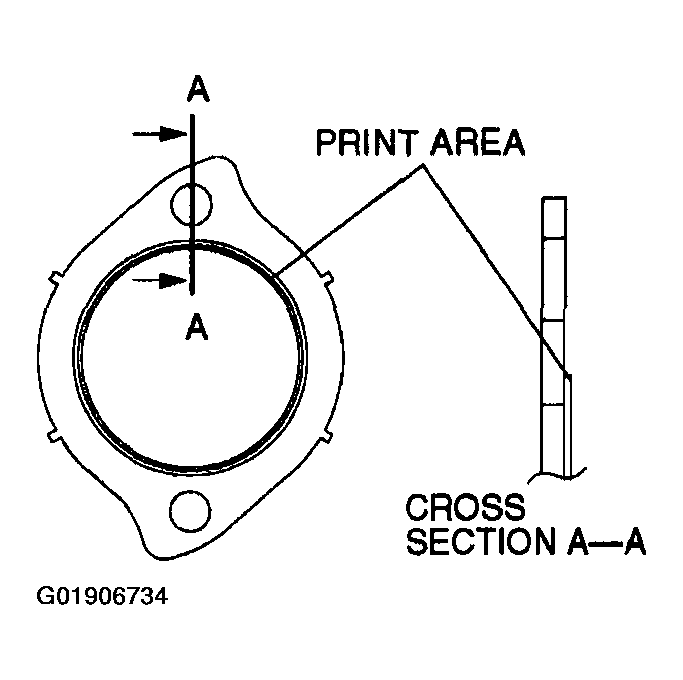

    Fig 1: Installing Water Outlet Pipe Gasket So That Print Area Faces Cylinder Head
    G01906734Courtesy of MAZDA MOTORS CORP.
