Cigarette Lighter Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the center panel. (See CENTER PANEL REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the figure.

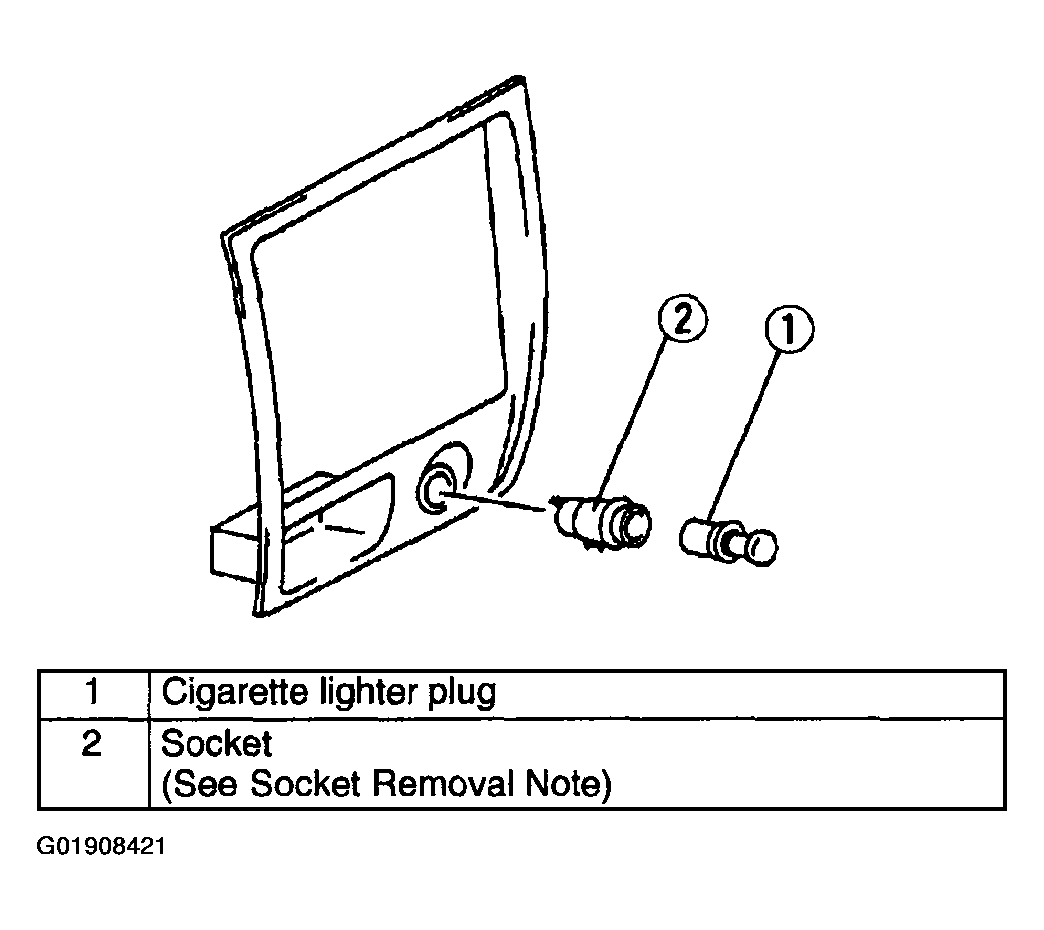

    Fig 1: Removing/Installing Cigarette Lighter
    G01908421Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
