Home >> Mazda >> 2003 >> MX-5 Miata Base, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Symptom Troubleshooting - Automatic Transmission >> No. 7 No Shift >> Fail-safe function

Fail-safe function

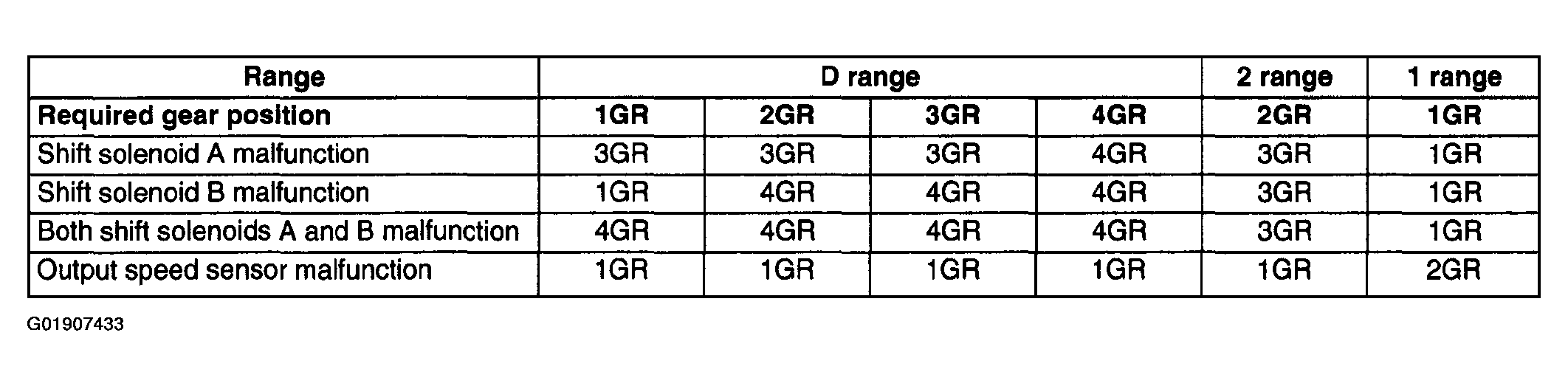

Fig 1: Fail-Safe Function Chart

G01907433

Courtesy of MAZDA MOTORS CORP.
