Automatic Trans
>>
Symptom Troubleshooting - Automatic Transmission
>>

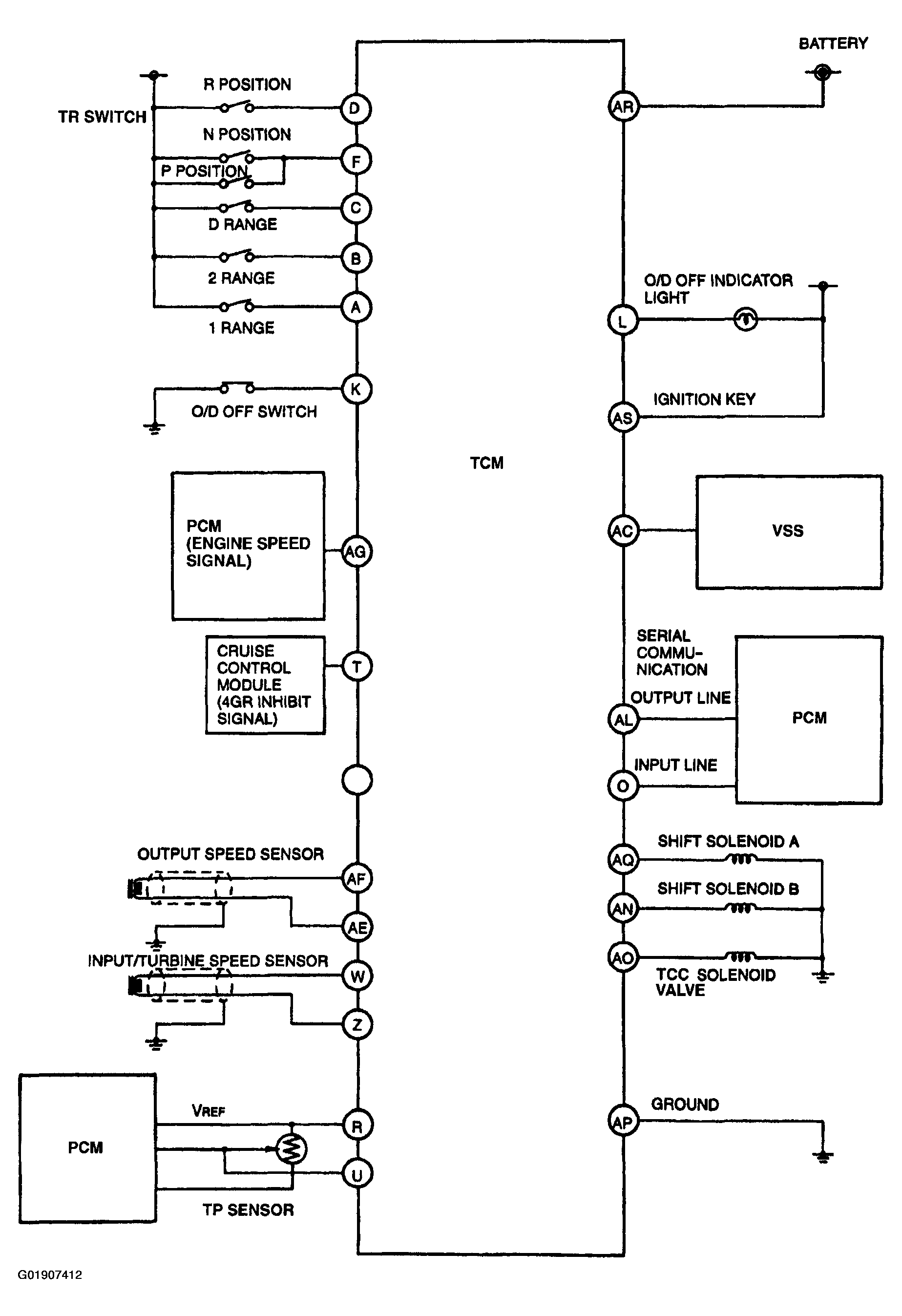

Automatic Transmission Control System Wiring Diagram
Automatic Transmission Control System Wiring Diagram
Fig 1: Automatic Transmission Control System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
