Home >> Mazda >> 2003 >> MX-5 Miata Base, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission Shift Mechanism >> Automatic Transmission Shift Mechanism Location Index

Automatic Transmission Shift Mechanism Location Index

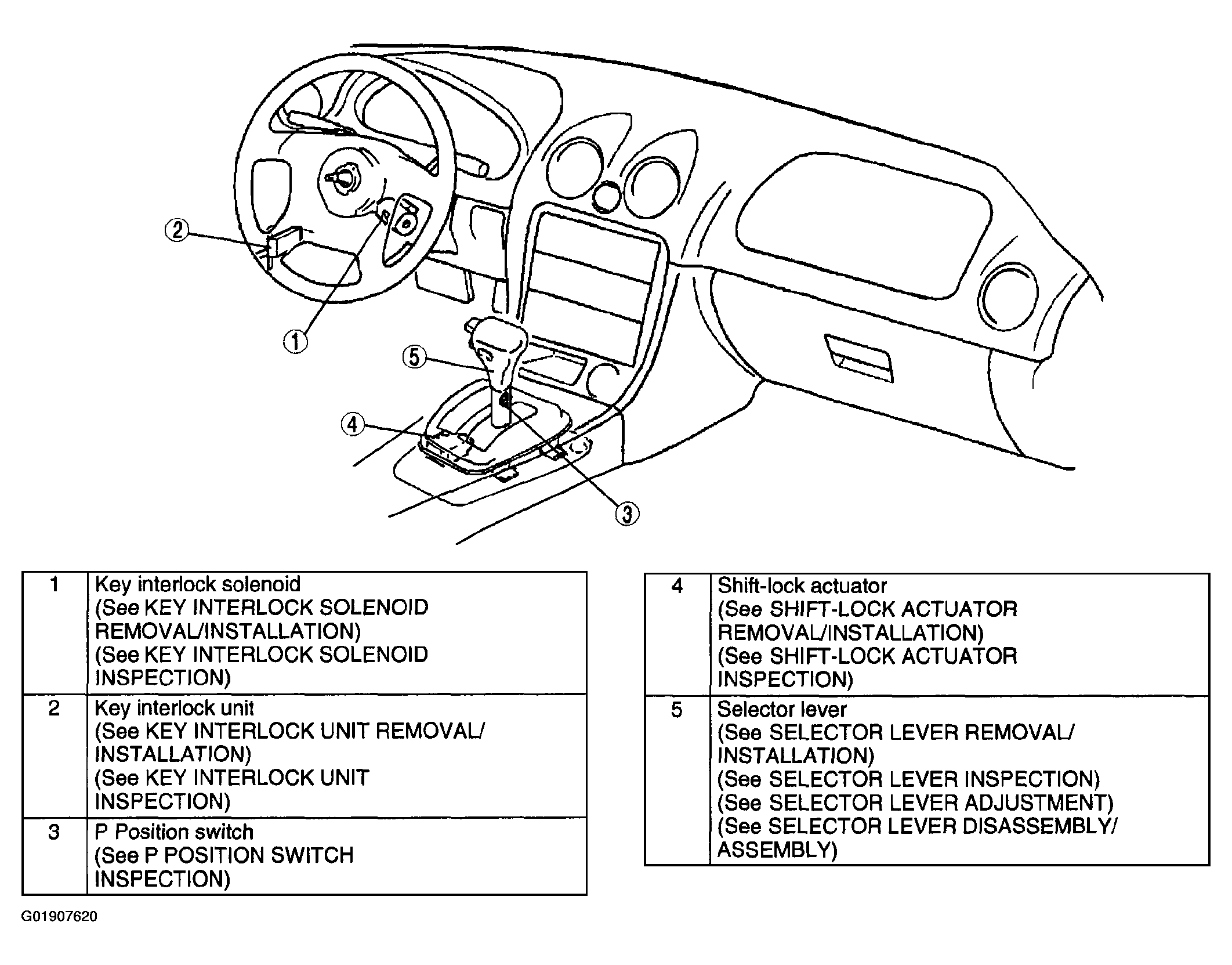

Fig 1: Identifying Automatic Transmission Shift Mechanism Location Index

G01907620

Courtesy of MAZDA MOTORS CORP.
